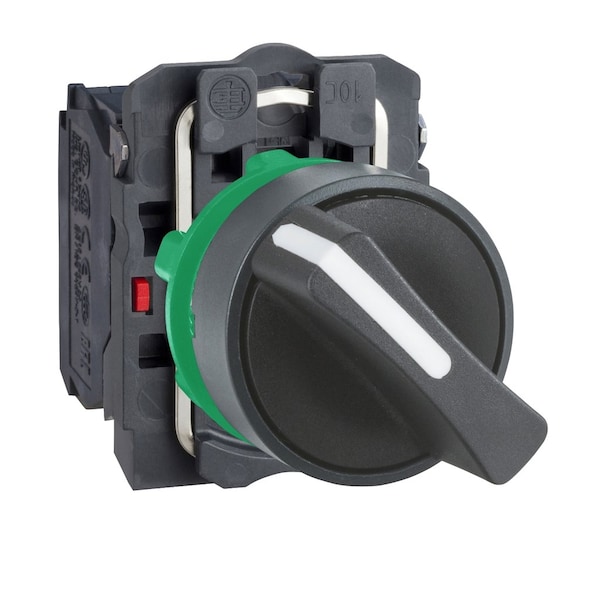

Non-Illum Selectr Swtch, 22mm, 2 Pos, Lever

product price: $58.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Basic Material Plastic
  • Type of Operator Lever
  • Contact Form 1NO/1NC
  • Action Maintained/Maintained
See all product information

Product Information

Dimensions

Size 22 mm
Depth 70 mm
Width 30 mm
Height 42 mm
Mounting Diameter 22 mm
Manufacturer Warranty Length 18 mo
Overall Width 1.18 in
Overall Height 1.65 in
Panel Cutout Diameter 22 mm
Overall Depth 2.76 in

Details

Item Selector Switch
Basic Material Plastic
Type of Operator Lever
Contact Form 1NO/1NC
Action Maintained/Maintained
Operator Head Material Plastic
Cam No Cam Included
Color Black
NEMA Rating 1, 12, 13, 2, 3, 4, 4X
Position 2
Bezel Material Plastic
Key Removal No Key
Bezel Color Chrome
Switch Operation @ Position B X
Switch Operation @ Position C No Third Position
IP Rating IP67, IP69, IP69K
Contact Rating 10A @ 600V AC
Standards BV, CSA, DNV, GL, LROS, UL Listed
Switch Operation @ Position A O
Switch Operation @ Position D No Fourth Position
NEMA Contact Rating Designation B600/Q600
Series XB5
AC Contact Rating 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Contacts Type And Composition 1 NO + 1 NC
Head Type standard
Ip Degree Of Protection IP67 IEC 60529 || IP69 || IP69K
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Nema Degree Of Protection NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation -40-70°C
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Device Short Name XB5
Contact Operation slow-break
Operator Profile black standard handle
Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Device Presentation complete product
Operator Position Information 2 positions 90°
Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ik Degree Of Protection IK06 IEC 50102
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head round
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Torque Value 0.14 N.m NO changing electrical state
Contacts Material silver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Terminals Description Iso N°1 (13-14)NO
Mechanical Durability 1000000 cycles
Tightening Torque 0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Storage -40-70°C
[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Product Certifications UL || LROS (Lloyds register of shipping) || DNV || BV || GL || CSA
Protective Treatment TH
Product Or Component Type selector switch
Positive Opening with EN/IEC 60947-5-1 appendix K
Electrical Reliability λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Contacts Usage standard contacts
Electrical Shock Protection Class class II IEC 60536
Terminals Description Iso N°1 (13-14)NO
Operator Head Type Short-Handled Knob
Operator Head Color Black
Hazardous Location Specification Not Rated
Switch Function @ 1st Position Off
Switch Function @ 3rd Position No Third Position
Switch Function @ 4th Position No Fourth Position
Operator Illumination Non-Illuminated
Number of Positions 2
Contact Block Material Plastic
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Switch Function @ 2nd Position On

Description

Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation B600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position A O, Switch Operation @ Position B X
