  13. Non-Illum Selectr Swtch, 22mm, 3 Pos, E Lvr

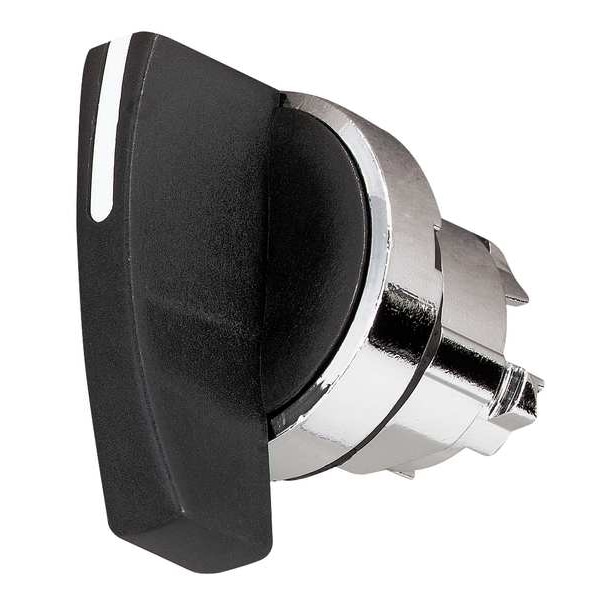

Schneider Electric Non-Illum Selectr Swtch, 22mm, 3 Pos, E Lvr ZB4BJ7 - main

Non-Illum Selectr Swtch, 22mm, 3 Pos, E Lvr

  • Mfr # ZB4BJ7

  • Zoro # G2531724

product price: $29.99
/ea

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Extended Lever
Action
Momentary/Maintained/Maintained
Cam
No Cam Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BJ7
Zoro #
G2531724
UPC #
785901354666
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Height
38 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Cad Overall Depth
44 mm
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Long-Handled Selector Switch
Basic Material
Metal
Type of Operator
Extended Lever
Action
Momentary/Maintained/Maintained
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
Black
Color
Black
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Position
3
Bezel Material
Chrome Plated Metal
Key Removal
No Key
Bezel Color
Chrome
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Switch Operation @ Position A
XOOX
Key Number
No Key
Switch Operation @ Position C
OXXO
IP Rating
IP67, IP69, IP69K
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position B
OXOX
Series
XB4
Shape Of Signaling Unit Head
round
Product Or Component Type
head for selector switch
Protective Treatment
TH
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
Mechanical Durability
1000000 cycles
Operator Profile
black long handle
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Head Type
standard
Ip Degree Of Protection
IP67 IEC 60529 || IP69 || IP69K
Operator Position Information
3 positions +/- 45°
Product Certifications
UL Listed || CSA || LROS (Lloyds register of shipping) || DNV || GL || BV
Ik Degree Of Protection
IK06 IEC 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Device Short Name
ZB4
Device Presentation
basic element
Overvoltage Category
class I IEC 60536
Operator Additional Information
non padlockable
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Head Type
Long-Handled Knob
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Non-Illuminated
Number of Positions
3
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification
Not Rated

Description

Long-Handled Selector Switch, 22 mm, 3 Position, Momentary/Maintained/Maintained Action, Extended Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
