  13. Non-Illum Selectr Swtch, 22mm, 3 Pos, E Lvr

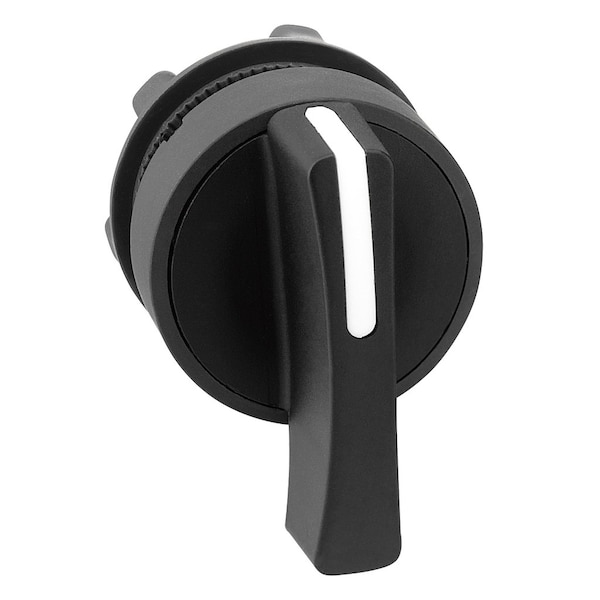

Schneider Electric Non-Illum Selectr Swtch, 22mm, 3 Pos, E Lvr ZB5AJ5 - main

Non-Illum Selectr Swtch, 22mm, 3 Pos, E Lvr

  • Mfr # ZB5AJ5

  • Zoro # G3200425

product price: $25.79
/ea

Key Features

Size
22 mm
Basic Material
Plastic
Type of Operator
Extended Lever
Action
Momentary/Maintained/Momentary
Cam
No Cam Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AJ5
Zoro #
G3200425
UPC #
785901386582
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
46 mm
Cad Overall Height
38 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Long-Handled Selector Switch
Basic Material
Plastic
Type of Operator
Extended Lever
Action
Momentary/Maintained/Momentary
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
Black
Color
Black
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Position
3
Bezel Material
Plastic
Key Removal
No Key
Bezel Color
Black
Switch Operation @ Position B
OXOX
Switch Operation @ Position D
No Fourth Position
Key Number
No Key
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Switch Operation @ Position C
OXXO
Switch Operation @ Position A
XOOX
IP Rating
IP67, IP69, IP69K
Series
XB5
Ambient Air Temperature For Storage
-40-70°C
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Product Or Component Type
head for selector switch
Operator Profile
black long handle
Ambient Air Temperature For Operation
-40-70°C
Overvoltage Category
class II IEC 60536
Device Short Name
ZB5
Mechanical Durability
1000000 cycles
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Position Information
3 positions +/- 45°
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529 || IP69K
Product Certifications
CSA || DNV || BV || GL || LROS (Lloyds register of shipping) || UL Listed
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection
IK06 IEC 50102
Operator Additional Information
non padlockable
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Head Type
standard
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Shape Of Signaling Unit Head
round
Protective Treatment
TH
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation
basic element
Operator Head Color
Black
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Illumination
Non-Illuminated
Operator Head Type
Long-Handled Knob
Number of Positions
3

Description

Long-Handled Selector Switch, 22 mm, 3 Position, Momentary/Maintained/Momentary Action, Extended Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
