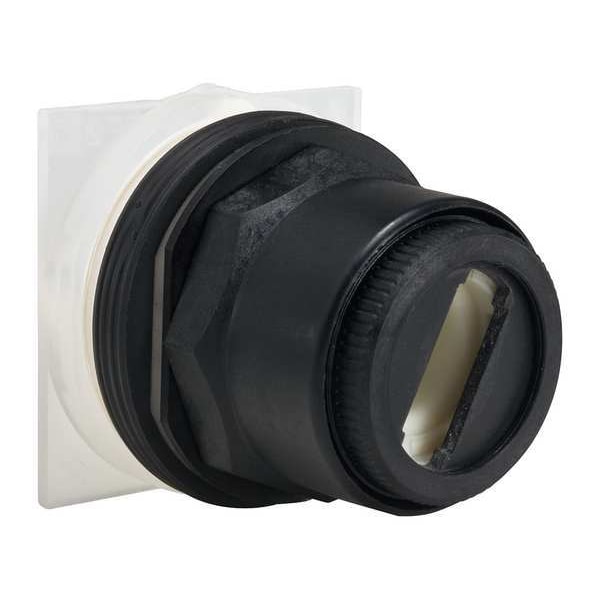

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos 9001SKS73 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos

  • Mfr # 9001SKS73

  • Zoro # G7057391

product price: $74.69
/ea

Key Features

Action
Maintained/Maintained/Momentary
Size
30 mm
Basic Material
Plastic
NEMA Rating
12, 13, 3, 3R, 4, 4X
Type of Operator
Operator Not Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS73
Zoro #
G7057391
UPC #
785901959908
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Action
Maintained/Maintained/Momentary
Basic Material
Plastic
NEMA Rating
12, 13, 3, 3R, 4, 4X
Type of Operator
Operator Not Included
Cam
C
Color
No Operator
Operator Color
No Operator
Position
3
Item
Selector Switch Head
Key Removal
No Key
Bezel Color
Black
Bezel Material
Plastic
IP Rating
IP66
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position B
OOOO
Key Number
No Key
Switch Operation @ Position C
OXOX
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508
Switch Operation @ Position A
XOXO
Series
9001SK
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
Device Presentation
basic element
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Device Short Name
9001SK
Mechanical Durability
500000 cycles
Protective Treatment
TC
Product Or Component Type
head for selector switch
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6
Contacts Type And Composition
without contact block
Shock Resistance
50 gn IEC 60068-2-27
Operator Position Information
3 positions
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class II IEC 61140
Ip Degree Of Protection
IP66 IEC 60529
Product Certifications
UL 508 || NEMA
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Positions
3
Operator Head Type
No Head Included
Hazardous Location Specification
Not Rated
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Non-Illuminated

Description

Selector Switch Head, 30 mm, 3 Position, Maintained/Maintained/Momentary Action, Operator Not Included Type of Operator, Operator Color No Operator, Key Removal No Key, Operator Head Material Not Applicable, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam C, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508, Key Number No Key
