  13. Non-Illum Selectr Swtch, 30mm, 3 Pos, E Lvr

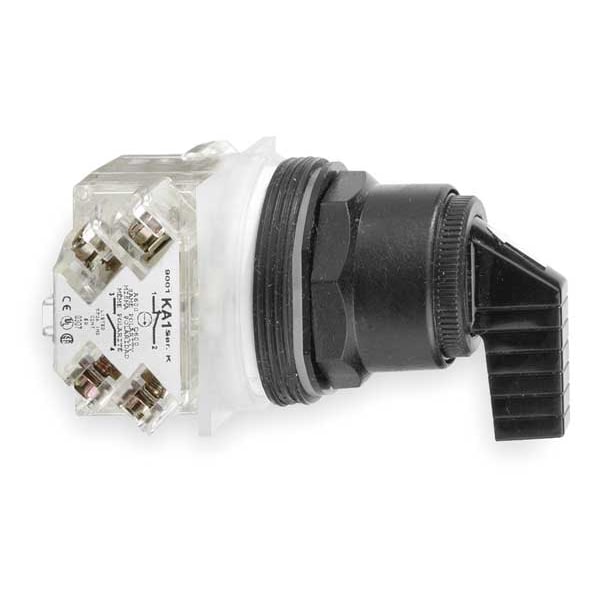

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos, E Lvr 9001SKS53FB - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, E Lvr

  • Mfr # 9001SKS53FB

  • Zoro # G6217197

product price: $85.75
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Extended Lever
Action
Momentary/Maintained/Momentary
Cam
C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS53FB
Zoro #
G6217197
UPC #
785901044048
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Long-Handled Selector Switch
Basic Material
Plastic
Type of Operator
Extended Lever
Action
Momentary/Maintained/Momentary
Cam
C
Operator Head Material
Plastic
Operator Color
Black
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Plastic
Position
3
Key Removal
No Key
Bezel Color
Black
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508
Switch Operation @ Position B
OOOO
Switch Operation @ Position A
XOXO
Switch Operation @ Position C
OXOX
IP Rating
IP66
Switch Operation @ Position D
No Fourth Position
Key Number
No Key
Series
9001SK
Device Presentation
basic element
Electrical Shock Protection Class
class II IEC 61140
Shape Of Signaling Unit Head
octagonal
Product Or Component Type
head for selector switch
Shock Resistance
50 gn IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6
Device Short Name
9001SK
Contacts Type And Composition
without contact block
Protective Treatment
TC
Product Compatibility
9001KA1 side 1 or 2
Mechanical Durability
500000 cycles
Operator Position Information
3 positions
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
UL 508 || NEMA
Operator Profile
black long handle
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-25-70°C
Operator Head Type
Long-Handled Knob
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Non-Illuminated
Number of Positions
3
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Color
Black
Hazardous Location Specification
Not Rated

Description

Long-Handled Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, Extended Lever Type of Operator, Operator Color Black, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam C, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508, Key Number No Key
