  13. Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

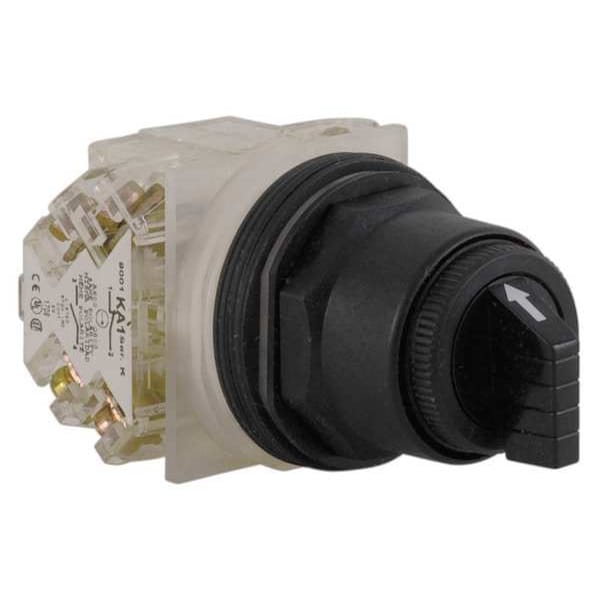

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever 9001KS42BH2 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # 9001KS42BH2

  • Zoro # G6687965

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
DPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KS42BH2
Zoro #
G6687965
UPC #
785901035046
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
DPDT
Cam
B
Operator Head Material
Polycarbonate
Color
Black
NEMA Rating
12, 13, 3, 3R, 4
Bezel Material
Metal
Position
3
Bezel Color
Chrome
Key Removal
No Key
IP Rating
IP65
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position B
XOXO
Contact Rating
10A @ 600V AC
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position A
XOOX
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position C
OXXO
Contacts Type And Composition
2 C/O
Device Presentation
complete product
Connections - Terminals
screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Operator Profile
standard handle, black standard knob
Cap/Operator Or Lens Colour
black
Product Or Component Type
selector switch
Device Short Name
K
Product Certifications
UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
Cam Profile
2
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Operator Position Information
3 positions
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Switch Function @ 3rd Position
On
Operator Head Color
Black
Operator Head Type
Short-Handled Knob
Number of Positions
3
Operator Illumination
Non-Illuminated
Switch Function @ 4th Position
No Fourth Position
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Switch Function @ 2nd Position
Off
Hazardous Location Specification
Not Rated
Switch Function @ 1st Position
On
Contact Block Material
Metal

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, DPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP65, Cam B, Switch Operation @ Position A XOOX, Switch Operation @ Position B XOXO, Switch Operation @ Position C OXXO
