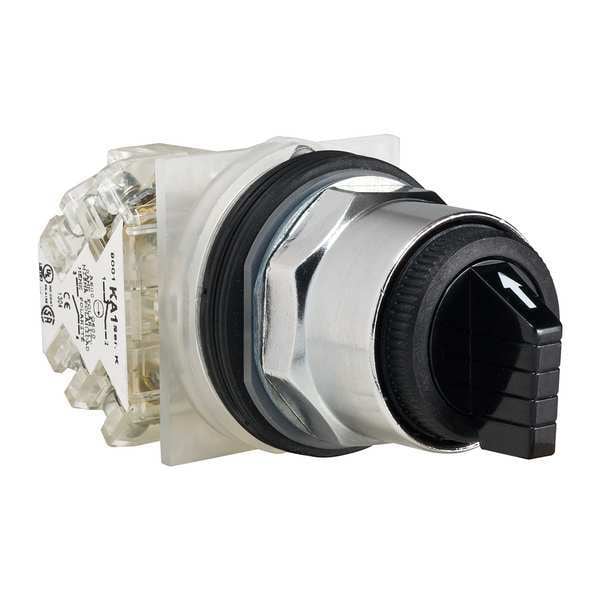

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever 9001KS53BH13 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # 9001KS53BH13

  • Zoro # G6946231

product price: $130.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Action
Momentary/Maintained/Momentary
Contact Form
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KS53BH13
Zoro #
G6946231
UPC #
785901035244
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Momentary/Maintained/Momentary
Contact Form
SPDT
Operator Head Material
Polycarbonate
Cam
C
Color
Black
NEMA Rating
12, 13, 3, 3R, 4
Position
3
Bezel Material
Metal
Bezel Color
Chrome
Key Removal
No Key
IP Rating
IP66
Switch Operation @ Position A
OX
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position B
OO
Contact Rating
10A @ 600V AC
Switch Operation @ Position C
XO
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position D
No Fourth Position
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Compatibility
9001KA1 side 2
Operator Profile
standard handle, black standard knob
Device Short Name
K
Cap/Operator Or Lens Colour
black
Return
both sides to centre
Connections - Terminals
screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Cam Profile
3
Device Presentation
complete product
Product Or Component Type
selector switch
Contacts Type And Composition
1 C/O
Product Certifications
CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR || CE
Operator Position Information
3 positions
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Switch Function @ 1st Position
Momentary
Number of Positions
3
Hazardous Location Specification
Not Rated
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 2nd Position
Off
Contact Block Material
Metal
Operator Head Type
Short-Handled Knob
Switch Function @ 3rd Position
Momentary
Operator Head Color
Black
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Operator Illumination
Non-Illuminated

Description

Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, SPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP66, Cam C, Switch Operation @ Position A OX, Switch Operation @ Position B OO, Switch Operation @ Position C XO
