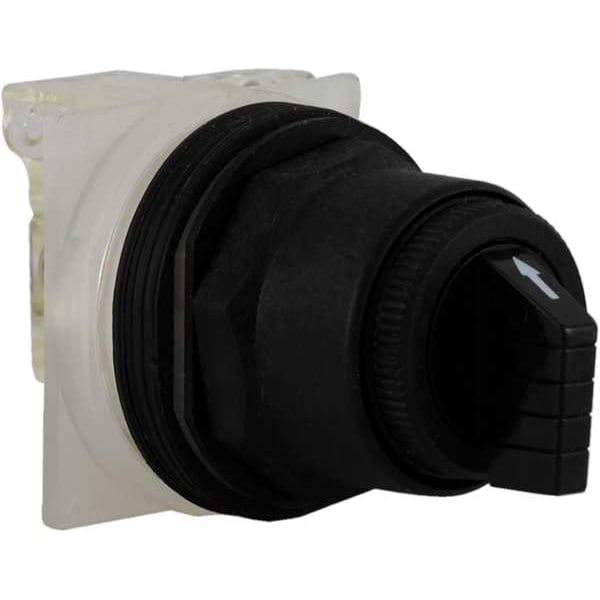

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever 9001SKS53BH1 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # 9001SKS53BH1

  • Zoro # G0778583

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Momentary/Maintained/Momentary
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS53BH1
Zoro #
G0778583
UPC #
785901043997
Country of Origin
Mexico

Dimensions

Size
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm
Mounting Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Momentary/Maintained/Momentary
Operator Head Material
Polycarbonate
Cam
C
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Plastic
Position
3
Bezel Color
Black
Key Removal
No Key
Switch Operation @ Position C
XO
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position B
OO
Contact Rating
10A @ 600V AC
IP Rating
IP66
Switch Operation @ Position A
OX
Switch Operation @ Position D
No Fourth Position
NEMA Contact Rating Designation
A600/Q600
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
Harmony 9001K
Switch Function @ 3rd Position
Momentary
Switch Function @ 1st Position
Momentary
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Hazardous Location Specification
Not Rated
Operator Head Color
Black
Switch Function @ 2nd Position
Off
Contact Block Material
Plastic
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Non-Illuminated
Number of Positions
3
Operator Head Type
Short-Handled Knob
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-25-70°C
Product Certifications
CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Ip Degree Of Protection
IP66 IEC 60529
Electrical Shock Protection Class
class II IEC 61140
Product Or Component Type
selector switch
Device Presentation
complete product
Protective Treatment
TC
Contacts Type And Composition
1 C/O
Device Short Name
9001SK
Operator Position Information
3 positions
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13

Description

Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam C, Switch Operation @ Position A OX, Switch Operation @ Position B OO, Switch Operation @ Position C XO
