  15. Non-Illuminated Multihead Operator, 22 mm, Rectangular

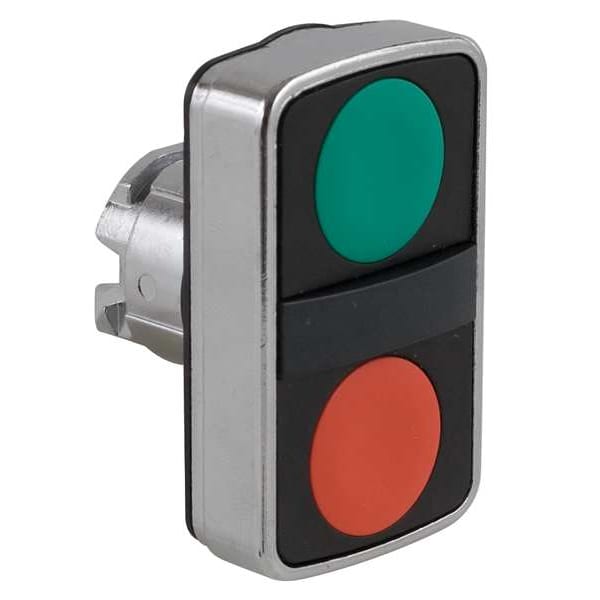

Schneider Electric Non-Illuminated Multihead Operator, 22 mm, Rectangular ZB4BA7340 - main

Non-Illuminated Multihead Operator, 22 mm, Rectangular

  • Mfr # ZB4BA7340

  • Zoro # G3548526

product price: $36.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
(1) Green; (1) Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BA7340
Zoro #
G3548526
UPC #
785901669227
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Overall Width
1.18 in
Overall Height
1.97 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
(1) Green; (1) Red
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Legend/Background Color
Green/Red
NEMA Rating
13, 4X
Type of Operator
(2) Flush Buttons
Number of Heads
2
IP Rating
IP66
Shape
Rectangular
Number of Operators
2
Bezel Material
Metal
Series
XB4
Shape Of Signaling Unit Head
rectangular
Ambient Air Temperature For Operation
-40-70°C
Electrical Shock Protection Class
class I IEC 60536
Ik Degree Of Protection
IK06 IEC 50102
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
green flush, unmarked || red flush, unmarked, 2 flush push-buttons
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation
basic element
Device Short Name
ZB4
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529
Product Certifications
UL Listed || BV || GL || CSA || DNV || LROS (Lloyds register of shipping)
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Head Type
standard
Operators Description
green unmarked - red unmarked
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Product Or Component Type
head for double-headed push-button
Product Type
Multihead Operators
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification
Not Rated
Number of Indicator Lights
0
Operator Material
Metal

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Metal, Bezel Material Metal, Color Green/Red, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color Green/Red, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
