Shop SCHNEIDER ELECTRIC

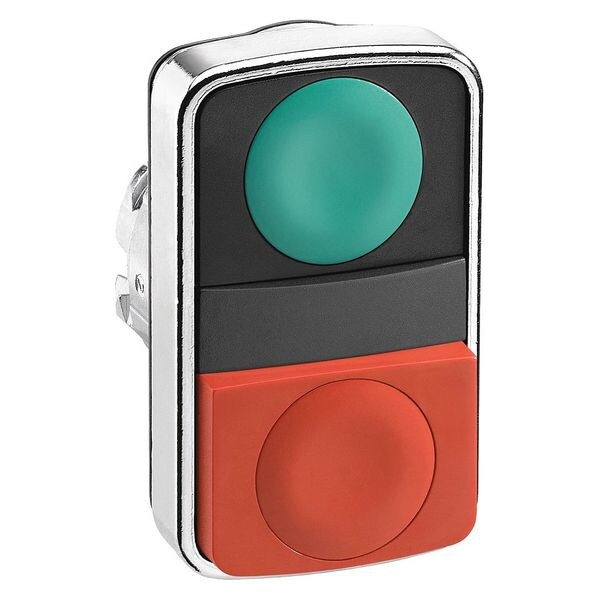

Non-Illuminated Multihead Operator, 22 mm, Rectangular

  • Mfr # ZB4BL7340

  • Zoro # G3537913

product price:
$
27.39
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green; Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BL7340
Zoro #
G3537913
UPC #
785901671824
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.38 in
Overall Height
1.97 in

Details

Item
Multihead Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green; Red
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Type of Operator
(1) Extended Button, (1) Flush Button
Shape
Rectangular
NEMA Rating
13, 4X
IP Rating
IP66
Number of Heads
2
Legend/Background Color
White/Green, White/Red
Bezel Material
Metal
Series
XB4
Features
Visually Distinct at a Distance, High Brightness, Double Head
Number of Operators
2
Operator Profile
1 flush - 1 projecting push-buttons, green flush, unmarked || red projecting, unmarked
Electrical Shock Protection Class
class I IEC 60536
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
Mechanical Durability
1000000 cycles
Ik Degree Of Protection
IK03 IEC 50102
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Product Certifications
UL Listed || GL || DNV || CSA || BV || LROS (Lloyds register of shipping)
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
ZB4
Ip Degree Of Protection
IP69 IEC 60529 || IP66 IEC 60529 || IP69K
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type
standard
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Shape Of Signaling Unit Head
rectangular
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
head for double-headed push-button
Device Presentation
basic element
Operators Description
green unmarked - red unmarked
Operating Temperature - Maximum
158 Degrees F
Product Type
Multihead Operators
Number of Indicator Lights
0
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification
Not Rated
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F
Operator Material
Metal

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Extended Button, (1) Flush Button, Head Material Metal, Bezel Material Metal, Color Green/Red, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color White/Green, White/Red
