Item

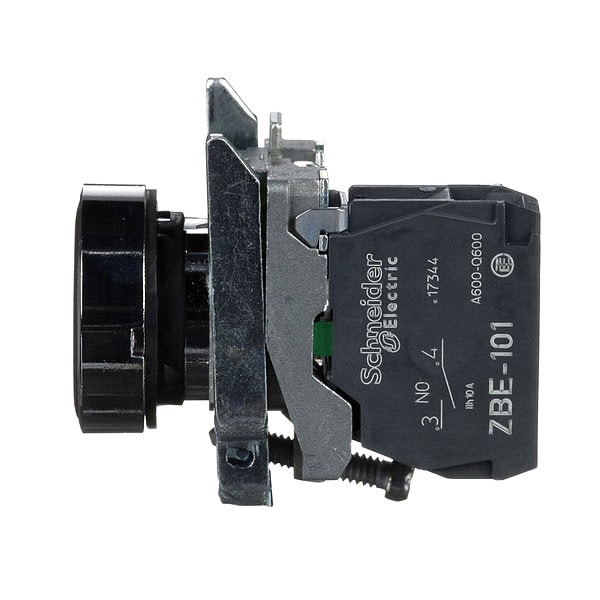

Flush Push Button Operator
Type of Operator
Flush Button
Terminal Connection
Screw Clamp
Bezel
Chrome Plated Metal
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
NEMA Contact Rating Designation
A600/Q600
IP Rating
IP66, IP67, IP69, IP69K
Standards
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Contact Rating
10A @ 600V AC
Product Type
Push Button Operators
Tightening Torque
7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Contacts Material
Silver alloy (Ag/Ni)
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Electrical Reliability
Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Operator Profile
Black flush, unmarked
Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description ISO n°1
(13-14)NO
Rated Insulation Voltage
600 V 3)IEC 60947-1
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Device Presentation
Complete product
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
IK Degree Of Protection
IK06 IEC 50102
Contact Operation
Slow-break
Operating Force
3.8 N NO changing electrical state
Mechanical Durability
10000000 cycles
Contact Type and Composition
1 NO
NEMA Degree Of Protection
NEMA 13; NEMA 4X
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Overvoltage Category
Class I IEC 60536
Vibration Resistance
5 gn 2 to 500 Hz)IEC 60068-2-6
Contacts Usage
Standard contacts
IP Degree Of Protection
IP66 IEC 60529; IP67; IP69; IP69K
Shape Of Screw Head
Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm
Product Or Component Type
Push-button
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Product Certifications
GL; BV; LROS (Lloyds register of shipping); UL Listed; CSA; DNV
Operating Travel
0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)
Fixing Collar Material
Zamak
Terminals Description ISO n°1
(13-14)NO
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Illumination
Non-Illuminated
Features
For High Power Applications, For Low Load Electrical Contact Applications
Mechanical Operating Durability
1.00 x 10^7
Operating Temperature - Maximum
158 Degrees F
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
NEMA Enclosure Rating
13, 4X
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
600 V AC/DC
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
