Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
NEMA Contact Rating Designation
A600/Q600
Number of Operators
1
Material
metal
Product Type
Push Button Operators
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Mechanical Durability
5000000 cycles
Contacts Material
Silver alloy (Ag/Ni)
Contact Operation
Slow-break
Operator Profile
Black mushroom 40 mm, unmarked
Device Presentation
Complete product
Tightening Torque
7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1
Fixing Collar Material
Zamak
Product Certifications
DNV; CSA; UL Listed; GL; BV; LROS (Lloyds register of shipping)
Vibration Resistance
5 gn 2 to 500 Hz)IEC 60068-2-6
Shock Resistance
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operating Force
3.8 N NO changing electrical state
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Operating Travel
0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Overvoltage Category
Class I IEC 60536
Shape Of Screw Head
Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm
Contact Type and Composition
1 NO
Product Or Component Type
Push-button
Contacts Usage
Standard contacts
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
IK Degree Of Protection
IK06 IEC 50102
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
NEMA Degree Of Protection
NEMA 13; NEMA 4X
Protective Treatment
TH
Head Type
Standard
Electrical Reliability
Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Rated Insulation Voltage
600 V 3)IEC 60947-1
IP Degree Of Protection
IP66 IEC 60529; IP69; IP69K
Positive Opening
Without
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Bezel Material
Chrome
Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Operator Material
Metal
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Operating Temperature - Maximum
158 Degrees F
Push Button Style
Mushroom Head
Operator Voltage Rating - Maximum
600 V AC/DC
NEMA Enclosure Rating
13, 4X
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V

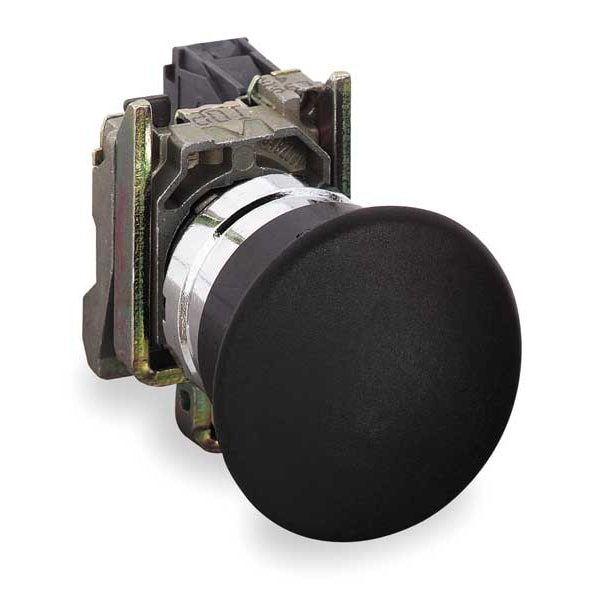

Mushroom Head Push Button, 22 mm, Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 13, 4X, IP Rating IP66, IP69, IP69K, Legend Not Applicable
