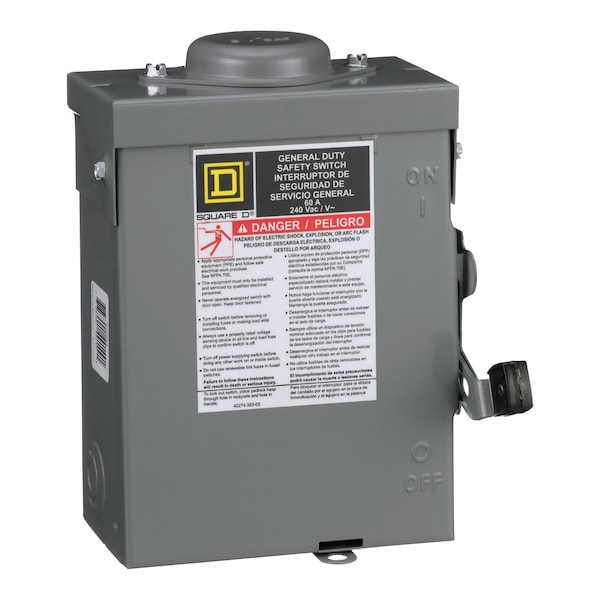

Schneider Electric Nonfusible, Safety Switch, General Duty, 240 V, SPST, Indoor/Outdoor DU222RBUP - main

Nonfusible, Safety Switch, General Duty, 240 V, SPST, Indoor/Outdoor

  • Mfr # DU222RBUP

  • Zoro # G600422599

product price:  $134.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
SPST
Current Rating
60 A
Phase
Single
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DU222RBUP
Zoro #
G600422599
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
3-3/4 in
Height
9.63 in
Width
7-3/4 in

Details

Item
Safety Switch
Protection Method
Nonfusible
Contact Form
SPST
Current Rating
60 A
Phase
Single
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
10 HP @ 240 V
Voltage
240 V
Standards
UL Listed
Duty
General
Number of Poles
2
Amps AC
60 A
Weight
1.8 kg
Mounting
Surface
Gauge/Conductor
12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper)
Features
Mercury Free, PVC Free, Toxic Heavy Metal Free
Electrical Connection
Lugs
Number Of Wires
2
Device Composition
none
Series Name
general duty
Pvc Free
Yes
Device Application
residential
Wiring Configuration
2 wires
Disconnector Device Type
non-fusible disconnect switch
Awg Gauge
AWG 12...AWG 3 aluminium, AWG 14...AWG 3 copper
Motor Power Hp
10 hp at 240 V AC 60 Hz for 1 phase motors
Tightening Torque
35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10), 45-45 lbf.in 8.37-8.37 mm² (AWG 8), 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4), 50-50 lbf.in 26.67-26.67 mm² (AWG 3)

Description

GD NOT FUSED 2P 60A NEMA 3R UNIT PACK
