  11. Optimized Expansion, 8 Inputs, 6 Outputs

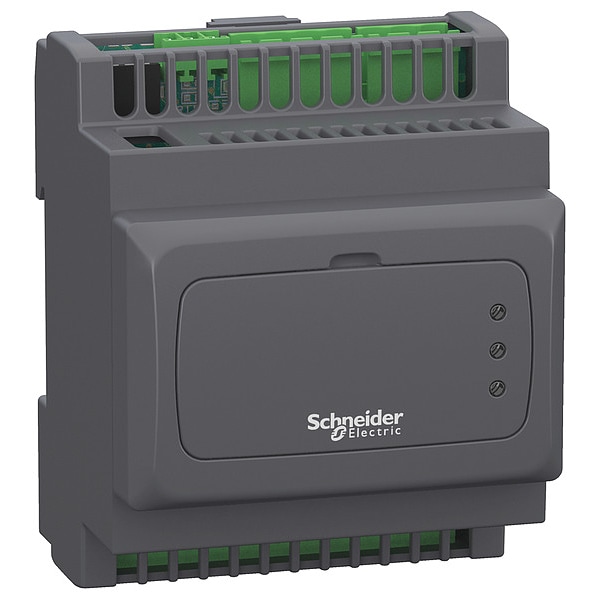

Schneider Electric Optimized Expansion, 8 Inputs, 6 Outputs TM171EP14R - main

Optimized Expansion, 8 Inputs, 6 Outputs

  • Mfr # TM171EP14R

  • Zoro # G3604037

product price: $123.99
/ea
Free Shipping & Returns

Key Features

Power Required
24 V
Number of Inputs
8
Number of Outputs
6
For Use With
Dedicated to M171 performance logic controllers, and also M172 logic controllers
Features
California Proposition 65, EU RoHS Directive, Green Premium Product, Mercury free, REACh Free of SVHC, REACh Regulation, RoHS Exemption Information
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TM171EP14R
Zoro #
G3604037
UPC #
785901614111
Country of Origin
Italy

Dimensions

Height
3.4 in
Width
2.76 in
Overall Width
2.7 in
Overall Depth
2.34 in
Overall Height
3.4 in

Details

Item
Optimized Expansion
Power Required
24 V
Number of Inputs
8
Number of Outputs
6
For Use With
Dedicated to M171 performance logic controllers, and also M172 logic controllers
Features
California Proposition 65, EU RoHS Directive, Green Premium Product, Mercury free, REACh Free of SVHC, REACh Regulation, RoHS Exemption Information
Output Type
(2) Analog, (4) Digital
Product Type
Optimized Expansion
Analogue Input Type
voltage 0 to 5 V ratiometric) || current 4 to 20 mA || voltage 0 to 10 V || NTC temperature probe - 50 to 110°C 0.1°C || NTC temperature probe - 40 to 137°C 0.1°C extended) || PTC temperature probe - 50 to 150°C 0.1°C
Discrete Output Number
1 relay outputs SPDT with independent common || 3 relay outputs SPST with same common
Analogue Input Number
4 configurable by pair
Number Of Inputs/Outputs
14
Discrete Input Number
4
Number Of Port
1 CAN port - screw terminal block
Discrete Output Current
3 A relay
Input/Output Number
2 analog output || 4 digital output || 4 analog input || 4 digital input
Product Specific Application
HVAC and pumping solution
Product Or Component Type
additional I/O module
Analogue Output Number
2 voltage 0 to 10 V
Discrete Input Current
2.5 mA
Discrete Input Voltage
24 V AC/DC
Sensor Power Supply
12-12 V DC 85 mA
Upgradeability
Upgradeable through digital modules and upgraded components
[Us] Rated Supply Voltage
24 V
Input Impedance
20 kOhm
Discrete Input Logic
sink or source (positive/negative)
Compatible Product Type
Performance Logic Controllers
Output Circuit Current - Maximum
3 mA
Input Circuit Current - Minimum
4 mA
Compatible with Brand
Schneider
Input Type
(4) Analog, (4) Digital
Wire Connection Type
Screw Clamp
Current Rating
20 mA
Input Circuit Voltage - Maximum
10 V
Compatible with Series
M171, M172
Output Circuit Voltage - Minimum
0 V
Input Circuit Voltage - Minimum
0 V
Input Circuit Current - Maximum
20 mA
Output Circuit Voltage - Maximum
10 V

Description

Optimized Expansion, Width 2.76 in, Number of Inputs 8, For Use With Dedicated to M171 performance logic controllers, and also M172 logic controllers, Number of Outputs 6, Power Required 24 V, Height 3.4 in, Product Type Input/Output Module, Current Rating 20 mA, Wire Connection Type Screw Clamp

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
