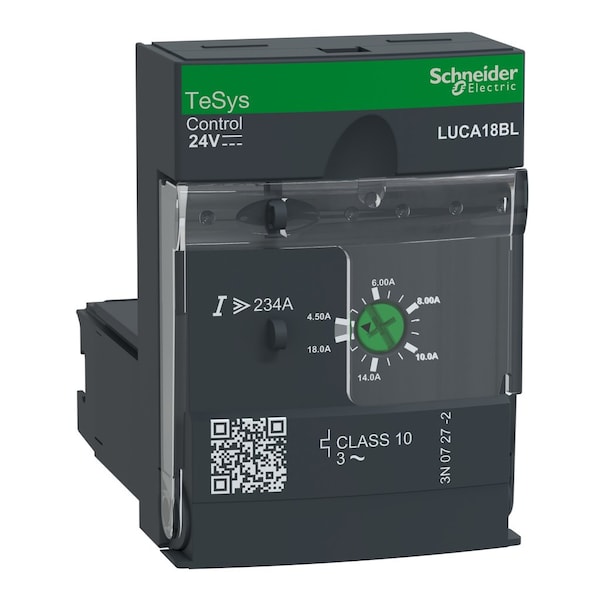

Schneider Electric Overload Module, 4.5 A Min current, 18 A Max current, 690V AC LUCA18BL - main

Overload Module, 4.5 A Min current, 18 A Max current, 690V AC

  • Mfr # LUCA18BL

  • Zoro # G0852671

product price: $151.99
/ea
Free Shipping & Returns

Key Features

Minimum Overload Relay Current Setting
4.5 A
Maximum Overload Relay Current Setting
18 A
Trip Class
10
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LUCA18BL
Zoro #
G0852671
UPC #
785901221937
Country of Origin
France

Dimensions

Height
66 mm
Width
45 mm
Depth
60 mm
Body Height - Relay
2.6 in
Body Width - Relay
1.77 in
Overall Height - Relay
2.6 in
Body Depth - Relay
2.36 in

Details

Item
Overload Module
Minimum Overload Relay Current Setting
4.5 A
Maximum Overload Relay Current Setting
18 A
Trip Class
10
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1
Coil Volts
24V DC
Features
Manual reset; Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection; Free of Halogen, Mercury & Pvc Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
Number of Poles
3
Hz
40 to 60 Hz
Overload Relay Amp Setting
4.5 to 18 A
Sensing Method
Thermal
Frame / Series / Class / Code
Class 10
Item - Relay
IEC Style Overload Relay
Separate Mounting
No
Trip Class - Overload
10
Kit Required for Retrofit Mtg.
No
Reset Type - Relay
Manual
Overload Relay Current Range
4.5 to 18A
Use With - Contactors and Starters
Mfr. Series LUA1C Contactors
Weight
0.135 kg
Operating Voltage
690V AC
Coil Voltage
24V DC
Phase
Three
Maximum Operating Temperature
158 Degrees F
Minimum Operating Temperature
-13 Degrees F
Reset Type
Manual
Compatible with Series
TeSys Ultra
Minumum Rated Motor Current Adjustment
4.5 A
Compatible with Manufacturer Model Number
LUB32, LUB38
Maximum Rated Motor Current Adjustment
18 A
Compatible Manufacturer Part Number
LUB32, LUB38
Compatible Manufacturer Model Number
LUB32, LUB38
For Use With Mfr. Model Number
LUB32, LUB38
Compatible with Manufacturer Model No.
LUB32, LUB38
Compatible with Mfr. Model No.
LUB32, LUB38
For Use with Mfr Model Number
LUB32, LUB38
Compatible Pump Manufacturer Part Number
LUB32, LUB38
Compatible Mfr. Model Number
LUB32, LUB38

Description

Overload Module, Maximum Rated Motor Current Adjustment 18 A, Minumum Rated Motor Current Adjustment 4.5 A, Coil Voltage 24V DC, Compatible with Series TeSys Ultra, Trip Class 10, Phase Three, Maximum Voltage Rating 690V AC, Reset Type Manual, Standards CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1, Compatible Grainger Part Number 5AB64, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -13 Degrees F
