Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
2.5 A
Maximum Overload Relay Current Setting
4:00 AM
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Use With - Contactors and Starters
Mfr. Series LC1D09 to LC1D32 Contactors
Features
Single Phase Sensitivity
For Use With
LC1D09 thru LC1D32 Contactor
Sensing Method
Bimetallic
Relay Application
motor protection
Control Type
Red push-button stop || Blue push-button reset
Flame Retardance
V1 conforming to UL 94
Product Certifications
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Network Frequency
0 to 400 Hz
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Product Compatibility
LC1D12 || LC1D09 || LC1D25 || LC1D38 || LC1D32 || LC1D18
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1

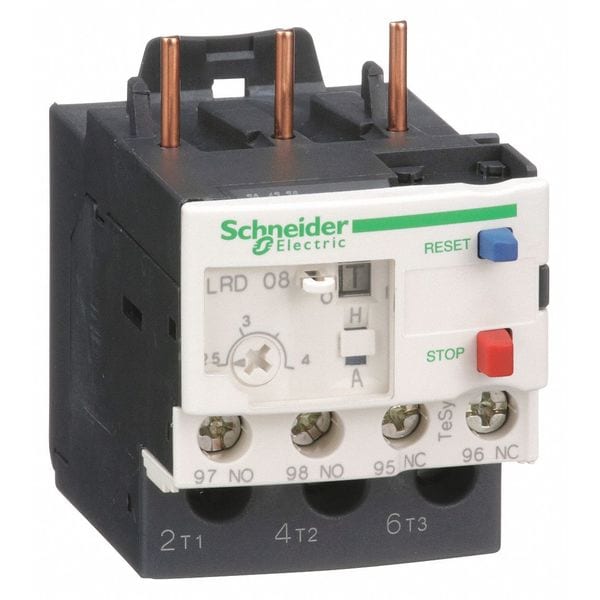

Product Name
TeSys LRD || TeSys Deca
Ambient Air Temperature For Storage
-60-70°C
Range
TeSys || TeSys Deca
Thermal Protection Adjustment Range
2.5-4 A
Product Or Component Type
differential thermal overload relay
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Thermal Overload Class
class 10A IEC 60947-4-1
Climatic Withstand
IACS E10
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Permissible Current
3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Terminal Connection Type
Screw Clamp Terminals
Mounting Style
Direct To Contactor
Maximum Operating Temperature
140 Degrees F
Compatible with Series
TeSys Deca
Minimum Operating Temperature
-4 Degrees F
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
