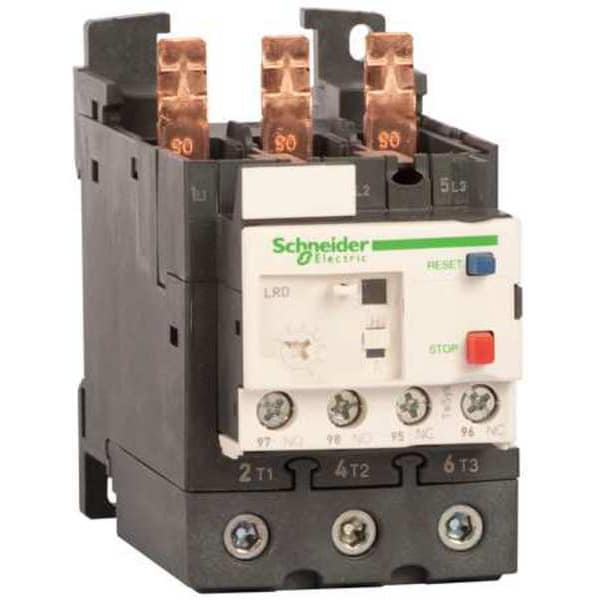

Overload Relay, 1NC/1NO, 30 A Min current, 40 A Max current, 690V AC

Overload Relay, 1NC/1NO, 30 A Min current, 40 A Max current, 690V AC

Mfr # LR3D340
Zoro # G1776345

$118.99

Free Shipping & Returns

Key Features

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

30 A

Maximum Overload Relay Current Setting

40 A

Trip Class

10A

Overload Protection Type

Thermal

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

LR3D340

Zoro #

G1776345

UPC #

785901952572

Country of Origin

France

Dimensions

Depth

4.84

Overall Height - Relay

2.76 in

Height

2.76"

Body Height - Relay

2.76 in

Body Depth - Relay

4.84 in

Width

2.17

Body Height

2.76 in

Overall Height

2.76 in

Details

Item

Overload Relay

Auxiliary Contact Form

1NC/1NO

Minimum Overload Relay Current Setting

30 A

Maximum Overload Relay Current Setting

40 A

Trip Class

10A

Overload Protection Type

Thermal

Maximum Voltage Rating

690V AC

Standards

CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1

Kit Required for Retrofit Mtg.

Trip Class - Overload

Features

Non Differential

Sensing Method

Bimetallic

Use With - Contactors and Starters

Mfr. Series LC1D40A to LC1D65A Contactors

Number of Poles

Separate Mounting

Yes

For Use With

TeSys D LC1D40A thru LC1D65A Contactors

Starter Type

IEC

Thermal Protection Adjustment Range

30-40 A

Mechanical Robustness

shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6

Ambient Air Temperature For Operation

-20-60°C without derating IEC 60947-4-1

Product Certifications

IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA

Control Type

Red push-button stop || Blue push-button reset

Dielectric Strength

1.89 kV 50 Hz IEC 60947-1

Product Or Component Type

non differential thermal overload relay

Network Type

AC || DC

Relay Application

motor protection

Range

TeSys || TeSys Deca

Associated Fuse Rating

4 A gG signalling circuit || 4 A BS signalling circuit

Tightening Torque

control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors

Phase Failure Sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Device Short Name

LR3D

Tripping Threshold

1.14 +/- 0.06 Ir IEC 60947-4-1

Connections - Terminals

control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end

Network Frequency

0 to 400 Hz

Thermal Overload Class

class 10A IEC 60947-4-1

Ambient Air Temperature For Storage

-60-70°C

Permissible Current

0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit

Product Name

TeSys LRD || TeSys Deca

Climatic Withstand

IACS E10

Product Compatibility

LC1D65A || LC1D40A || LC1D50A

Flame Retardance

V1 conforming to UL 94

Minimum Operating Temperature

-4 Degrees F

Mounting Style

Direct To Contactor

Reset Type

Auto, Manual

IP Rating

IP20

Maximum Operating Temperature

140 Degrees F

Terminal Connection Type

Screw Clamp Terminals

Relay Style

IEC

Compatible with Series

TeSys Deca

Rated Insulation Voltage

Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1

Conventional Free Air Thermal Current

5 A signalling circuit

Rated Operational Voltage

690 V AC 0 to 400 Hz power circuit IEC 60947-4-1

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 40 A, Minimum Overload Relay Current Setting 30 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
