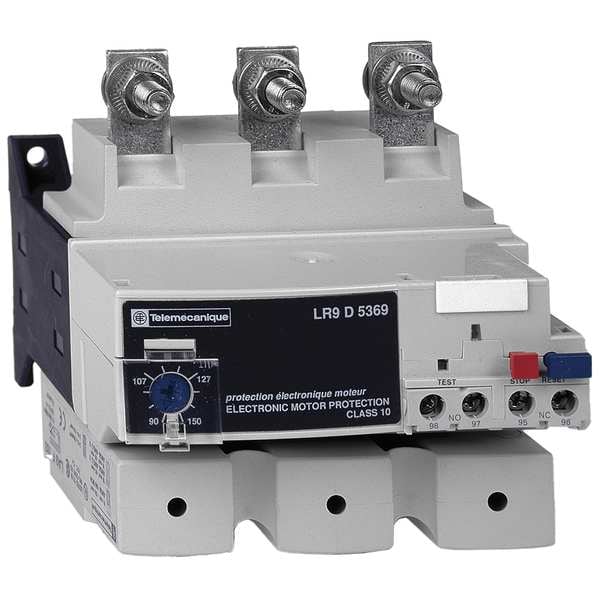

  11. Overload Relay, 1NC/1NO, 60 A Min current, 100 A Max current, 690V AC
Schneider Electric Overload Relay, 1NC/1NO, 60 A Min current, 100 A Max current, 690V AC LR9D5367 - main

Overload Relay, 1NC/1NO, 60 A Min current, 100 A Max current, 690V AC

  • Mfr # LR9D5367

  • Zoro # G0363885

product price: $356.80
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
60 A
Maximum Overload Relay Current Setting
100 A
Trip Class
10
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR9D5367
Zoro #
G0363885
UPC #
785901163657
Country of Origin
France

Dimensions

Width
4.72
Overall Height - Relay
3.98 in
Height
3.98"
Depth
5.19
Body Height - Relay
3.98 in
Body Depth - Relay
5.19 in
Body Height
4.65 in
Overall Height
4.65 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
60 A
Maximum Overload Relay Current Setting
100 A
Trip Class
10
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Trip Class - Overload
10
Sensing Method
Thermal
Number of Poles
3
For Use With
LC1D115 thru LC1D150 IEC Contactors, 115 to 150A
Use With - Contactors and Starters
Mfr. Series LC1D115 to LC1D150 Contactors
Features
Differential
Starter Type
IEC
Switching Capacity In Ma
0 to 150 mA
Range
TeSys
Product Or Component Type
electronic thermal overload relay
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Tripping Threshold
1.05 +/- 0.06 In alarm IEC 60947-4-1 || 1.12 +/- 0.06 In de-energisation IEC 60947-4-1
Relay Application
motor protection
Device Short Name
LR9D
Control Type
Red push-button stop || Blue push-button reset
Climatic Withstand
IACS E10
Product Compatibility
LC1D115 || LC1D150 || NSX circuit breaker
Product Certifications
UL || CSA || CCC || UKCA
Network Type
AC
Network Frequency
50-60 Hz
Connections - Terminals
power circuit bars || control circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end || control circuit screw clamp terminals 2 0.5-1.5 mm² flexible without cable end || alarm circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end
Maximum Voltage Drop
<2.5 V closed state
Mechanical Robustness
vibrations2 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks13 Gn for 11 ms IEC 60068-2-7
Operating Altitude
<= 6561.68 ft (2000 m) without derating
Phase Failure Sensitivity
tripping in 4 s +/- 20 % IEC 60947-4-1
Supply Voltage Limits
17-32 V
Product Name
TeSys LRD || TeSys Deca
Thermal Overload Class
class 10 IEC 60947-4-1
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Thermal Protection Adjustment Range
60-100 A
Ambient Air Temperature For Storage
-60-70°C
Tightening Torque
alarm circuit 0.45 N.m screw clamp terminals || power circuit 18 N.m bars M8 || control circuit 1.2 N.m screw clamp terminals
Signalling Function
alarm
Reset Type
Auto, Manual
Minimum Operating Temperature
-4 Degrees F
Mounting Style
Direct To Contactor
Terminal Connection Type
Screw Clamp Terminals
Compatible with Series
TeSys Deca
Maximum Operating Temperature
140 Degrees F
Relay Style
IEC
IP Rating
IP20
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Rated Insulation Voltage
power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL
Trip Clss
10

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 100 A, Minimum Overload Relay Current Setting 60 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
