  11. Overload Relay, 1NC/1NO, 63 A Min current, 80 A Max current, 1000V AC

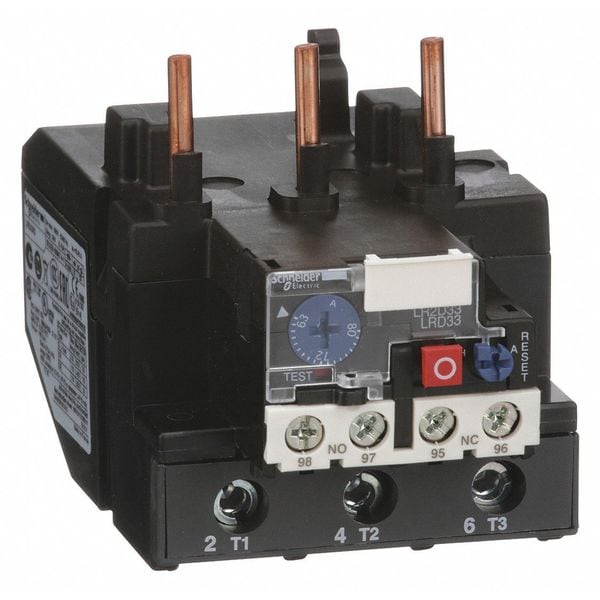

Schneider Electric Overload Relay, 1NC/1NO, 63 A Min current, 80 A Max current, 1000V AC LRD3363 - main

Overload Relay, 1NC/1NO, 63 A Min current, 80 A Max current, 1000V AC

  • Mfr # LRD3363

  • Zoro # G3345237

product price: $154.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
63 A
Maximum Overload Relay Current Setting
80 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRD3363
Zoro #
G3345237
UPC #
785901208334
Country of Origin
France

Dimensions

Body Height - Relay
4.84 in
Body Depth - Relay
4.76 in
Overall Height - Relay
4.84 in
Depth
4.76
Height
4.84"
Width
2.95
Overall Height
3.19 in
Body Height
3.19 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
63 A
Maximum Overload Relay Current Setting
80 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
1000V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
For Use With
LC1D65 thru LC1D80 Contactor
Sensing Method
Bimetallic
Trip Class - Overload
10
Number of Poles
3
Use With - Contactors and Starters
Mfr. Series LC1D65 to LC1D80 Contactors
Features
Single Phase Sensitivity; Differential
Starter Type
IEC
Relay Application
motor protection
Mechanical Robustness
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Product Certifications
IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA
Device Short Name
LRD
Range
TeSys
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals
Product Or Component Type
differential thermal overload relay
Network Type
DC || AC
Climatic Withstand
IACS E10
Flame Retardance
V1 conforming to UL 94
Ambient Air Temperature For Storage
-60-70°C
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Dielectric Strength
2.2 kV 50 Hz IEC 60947-1
Product Name
TeSys LRD || TeSys Deca
Control Type
Red push-button stop || Blue push-button reset
Connections - Terminals
power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Product Compatibility
LC1D80 || LC1D95
Thermal Overload Class
class 10A IEC 60947-4-1
Thermal Protection Adjustment Range
63-80 A
Network Frequency
0 to 400 Hz
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Permissible Current
0.72 A 500 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
Relay Style
IEC
Maximum Operating Temperature
140 Degrees F
Compatible with Series
TeSys Deca
Mounting Style
Direct To Contactor
Reset Type
Manual
Terminal Connection Type
Screw Clamp Terminals
IP Rating
IP20
Minimum Operating Temperature
-4 Degrees F
Rated Insulation Voltage
power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL
Rated Operational Voltage
1000 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Conventional Free Air Thermal Current
5 A signalling circuit
Trip Clss
10A

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 80 A, Minimum Overload Relay Current Setting 63 A, Trip Class 10A, Maximum Voltage Rating 1000V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
