  13. Panel Flange, Enclosed Power Relay, 30 A, 4 Pins, Faston Connector

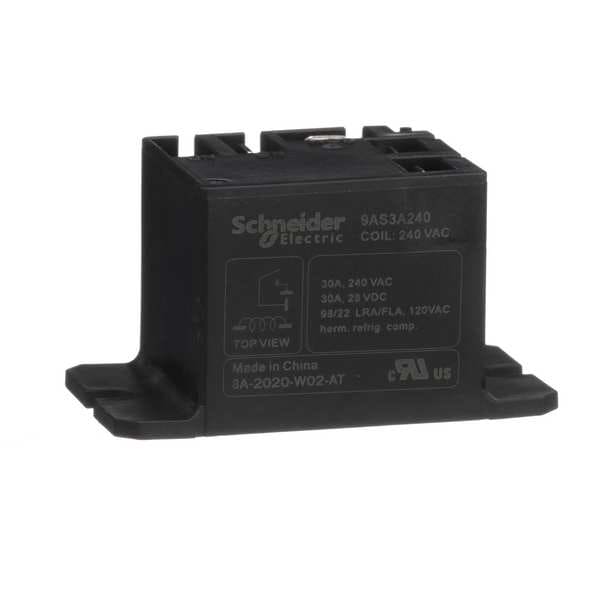

Schneider Electric Panel Flange, Enclosed Power Relay, 30 A, 4 Pins, Faston Connector 9AS3A240 - main

CAD Drawings

Download CAD Files

Panel Flange, Enclosed Power Relay, 30 A, 4 Pins, Faston Connector

  • Mfr # 9AS3A240

  • Zoro # G3301873

CAD Available
product price: $13.69
/ea

Key Features

CAD Drawing
Mounting Style
Panel Flange
Electrical Connection
Faston Connector
Number of Pins
4
Coil Voltage
240V AC
Current Rating
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9AS3A240
Zoro #
G3301873
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.1 in
Dimensions
1.10"H, 1.06"W, 1.95"D
Overall Depth
1.09 in
Body Width
1.083 in
Body Depth
1.976 in
Body Height
1.094 in
Depth
1.09 in (27.8 mm)
Width
1.07 in (27.3 mm)

Details

Item
Enclosed Power Relay
Mounting Style
Panel Flange
Electrical Connection
Faston Connector
Number of Pins
4
Coil Voltage
240V AC
Current Rating
30 A
Contact Form
SPST-NO
Contact Rating (AC)
10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V
Contact Rating (DC)
30 A @ 28V
Standards
UL60947-4-1
Features
Class F Coil Insulation
Power Consumption - Relay
2.8 VA
Hz
50/60
Contact Amp Rating (Resistive)
30A @ 240VAC/28VDC
Number of Poles
1
Contact Material
Silver Alloy
Coil Rating
2.8VA, 1.0W
Contact Amp Rating (Inductive)
22A @ 120V AC-8a
Series
9A Power Series
Dielectric Strength
1,500V Between Contacts with Micro Disconnection, 2,500V AC Between Coil and Contact
Sealing
Sealed
For Use With
Alarm Systems, HVAC Equipment, Motor Controls
Horsepower @ 240V AC
2 hp
Input Voltage
240V AC
Minimum Operating Temperature
-40 Degrees F
Power Consumption
2.6 VA
Resistance Properties
Shock-Resistant, Vibration-Resistant
Weight
1.12 oz
Mechanical Operating Durability
10,000,000
Motor Rated
Yes
Maximum Operating Temperature
104 Degrees F
Frequency
50/60 Hz
Horsepower @ 120V AC
1 hp
Maximum Switching Voltage
277V AC, 28V DC
Coil Resistance
13,490 ohm
Response Time
20 msec
Electrical Operating Durability
100,000
Operating Current
10 A at 277V (Ballast), 22 A at 20V AC (Full Load), 24 A at 240V AC (Resistive Load), 30 A at 240V AC, 30 A at 28V DC (Resistive Load), 98 A at 120V AC (Locked Rotor)
Switching Voltage
277 V AC || 28 V DC
Protection Category
RT III
Dielectric Voltage
2500 V AC between coil and contact || 1500 V between contacts with micro disconnection
CAD Available
Yes
Connections Terminals
Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm; Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
Rated Power in HP
1 hp at 125 V AC; 2 hp at 250 V AC
Pollution Degree
3
Network Frequency
50-60 Hz
ambient temperature range - operational
-40 to 104°F (-40 to 40°C)
Product Certifications
UL
Vibration Resistance
+/- 0.75 mm 10 to 55 Hz operating; +/- 0.75 mm 10 to 55 Hz not operating
Ambient Temperature Range - Storage
-40 to 185°F (-40 to 85°C)
Shock Resistance
10 gn operating; 100 gn not operating
Rated Impulse Withstand Voltage
4 kV 1.2/50µs
Rated Power in VA
470 VA at 240 V on pilot duty
Switch Function
SPST
Contact Composition
NO
Drop-out Voltage Threshold
>= 0.2 Uc
Average Resistance
13490 Ohm at 73°F (23°C) +/- 10 %
Operate Time
20 ms
Operating Position
Any position
Product Range
Harmony
Rated Insulation Voltage
320 V
[Uc] control circuit voltage
240 V AC 50-60 Hz
Release Time
10 ms
Control Circuit Voltage Limits
0.85...1.1 Uc
Minimum Switching Capacity
5 W at 1 A, 5 V DC; 12 VA at 1 A, 12 V AC
Status Indicator
No Indicator

Description

Enclosed Power Relay, Coil Voltage 240V AC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Faston Terminal, Number of Pins 4, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V, Contact Rating (DC) 30 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style Panel Flange, Body Depth 0.11 in, Body Height 1.97 in, Body Width 1.08 in, Coil Resistance 13,490 ohm
