Panel Flange, Enclosed Power Relay, Square, 30 A, 5 Pins, Faston Connector

CAD Viewer & Download Files

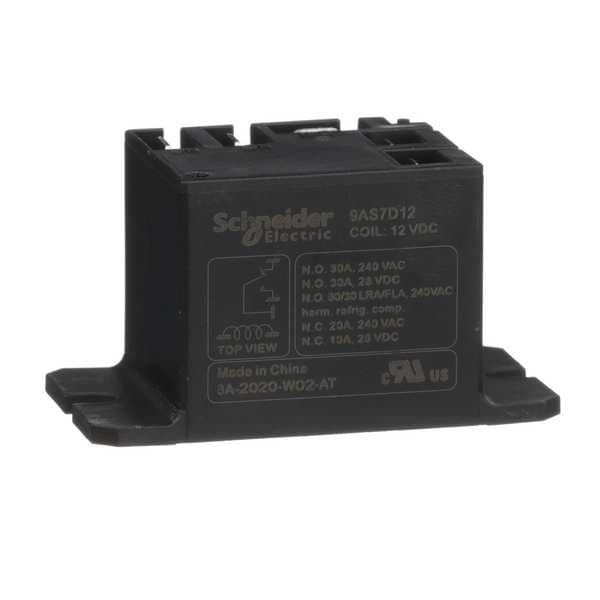

Panel Flange, Enclosed Power Relay, Square, 30 A, 5 Pins, Faston Connector

Mfr # 9AS7D12
Zoro # G3374156

CAD Available

$12.99

Key Features

CAD Drawing

Mounting Style

Panel Flange

Electrical Connection

Faston Connector

Base Shape

Square

Number of Pins

Coil Voltage

12V DC

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

9AS7D12

Zoro #

G3374156

UPC #

Country of Origin

China

Dimensions

Overall Height - Relay

1.1 in

Dimensions

1.10"H, 1.06"W, 1.95"D

Body Depth

1.976 in

Overall Depth

1.09 in

Body Height

1.094 in

Body Width

1.083 in

Width

1.07 in (27.3 mm)

Depth

1.09 in (27.8 mm)

Details

Item

Enclosed Power Relay

Mounting Style

Panel Flange

Electrical Connection

Faston Connector

Base Shape

Square

Number of Pins

Coil Voltage

12V DC

Current Rating

30 A

Contact Form

SPDT

Contact Rating (AC)

30 A @ 240V

Contact Rating (DC)

30 A @ 28V

Features

Ballast Load Ratings, Class F Coil Insulation

Contact Material

Silver Alloy

50/60

Number of Poles

Power Consumption - Relay

2.8 W

Contact Amp Rating (Resistive)

30A @ 240VAC (NO), 15A @ 240VAC (NC)

Coil Rating

2.8VA, 1.0W

Standards

UL60947-4-1

Contact Amp Rating (Inductive)

22A @ 120V AC-8a (NO), 30A @ 240V AC-8a (NO), 12A @ 240 V AC-8a (NC), 10A @ 277 V AC-8a (NC)

Horsepower @ 120V AC

1 hp

Maximum Switching Voltage

277V AC, 28V DC

Horsepower @ 240V AC

2 hp

Weight

1.12 oz

Coil Resistance

155 ohm

Input Voltage

12V DC

Minimum Operating Temperature

-40 Degrees F

For Use With

Alarm Systems, HVAC Equipment, Motor Controls

Resistance Properties

Shock-Resistant, Vibration-Resistant

Motor Rated

Yes

Dielectric Strength

1,500V Between Contacts with Micro Disconnection, 2,500V AC Between Coil and Contact

Maximum Operating Temperature

104 Degrees F

Response Time

20 msec

Series

9A Power Series

Electrical Operating Durability

100,000

Frequency

50/60 Hz

Mechanical Operating Durability

10,000,000

Operating Current

10 A at 277V AC-5a (NO Ballast), 10 A at 277V AC-8a (NC Full Load), 10 A at 28V DC (NC Resistive Load), 12 A at 240V AC-8a (NC Full Load), 20 A at 240V AC-1 (NC), 22 A at 120V AC-8a (NO Full Load), 3 A at 277V AC-5a (NC Ballast), 30 A at 240V AC (NO), 30 A at 240V AC-8a (NC Locked Rotor), 30 A at 240V AC-8a (NO Full Load), 30 A at 28V DC (NO Resistive Load), 33 A at 277V AC-8a (NC Locked Rotor), 80 A at 240V AC-8a (NO Locked Rotor), 98 A at 120V AC-8a (NO Locked Rotor)

Sealing

Sealed

Power Consumption

2.8 W

Switching Voltage

277 V AC || 28 V DC

Protection Category

RT III

Dielectric Voltage

2500 V AC between coil and contact || 1500 V between contacts with micro disconnection

CAD Available

Yes

Rated Impulse Withstand Voltage

4 kV 1.2/50Âµs

Pollution Degree

Vibration Resistance

+/- 0.75 mm 10 to 55 Hz operating; +/- 0.75 mm 10 to 55 Hz not operating

Operating Position

Any position

Rated Insulation Voltage

320 V

Average Coil Consumption

0.9 W

Control Circuit Voltage Limits

0.8...1.1 Uc

Load Current

30 A NO; 20 A NC

Release Time

10 ms

Rated Power in HP

1 hp at 125 V AC, NO; 2 hp at 250 V AC, NO; 0.25 hp at 125 V AC, NC; 0.5 hp at 250 V AC, NC

Drop-out Voltage Threshold

>= 0.1 Uc

Product Range

Harmony

Network Frequency

50-60 Hz

Rated Power in VA

470 VA at 240 V, NO on pilot duty; 275 VA at 240 V, NC on pilot duty

Ambient Temperature Range - Storage

-40 to 185Â°F (-40 to 85Â°C)

Shock Resistance

10 gn operating; 100 gn not operating

Average Resistance

155 Ohm at 73Â°F (23Â°C) +/- 10 %

[Uc] control circuit voltage

12 V DC

Operate Time

20 ms

ambient temperature range - operational

-40 to 104Â°F (-40 to 40Â°C)

Minimum Switching Capacity

5 W at 1 A, 5 V DC; 12 VA at 1 A, 12 V AC

Product Certifications

Connections Terminals

Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm; Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm

Status Indicator

No Indicator

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Electrical Connection Faston Terminal, Number of Pins 5, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 277V-5a (NO), 10 A @ 277V-8a (NC), 12 A @ 240V-8a (NC), 20 A @ 240V-1 (NC), 22 A @ 120V-8a (NO), 3 A @ 277V-5a (NC), 30 A @ 240V (NO), 30 A @ 240V-8a (NC), 30 A @ 240V-8a (NO), 33 A @ 277V-8a (NC), 80 A @ 240V-8a (NO), 98 A @ 120V-8a (NO)
