  15. Pendant Control Station, Dead End, 2 Button, Blk

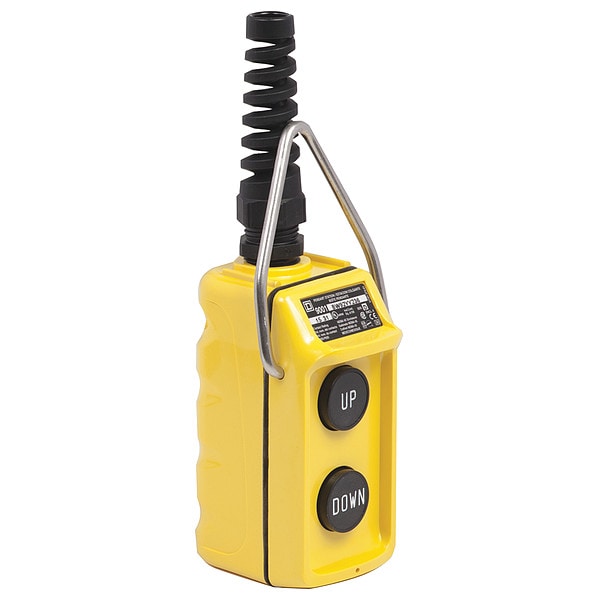

Schneider Electric Pendant Control Station, Dead End, 2 Button, Blk 9001BW92YY236 - main

Pendant Control Station, Dead End, 2 Button, Blk

  • Mfr # 9001BW92YY236

  • Zoro # G3462208

product price: $142.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Legend
Up/Down
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001BW92YY236
Zoro #
G3462208
UPC #
785901939443
Country of Origin
Mexico

Dimensions

Height
4.69 in
Width
2.19 in
Depth
2.94 in
Overall Height
4.69 in
Hub Size - Maximum
1/2 in
Overall Depth
2.94 in
Manufacturer Warranty Length
18 mo
Overall Width
2.19 in

Details

Item
Pendant Control Station
Number of Gangs
1
Legend
Up/Down
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
1NO/1NC
Number of Operators
2
NEMA Rating
1, 3, 3R, 4, 4X
Hub Style
Dead-End
Series
9001BW
Standards
CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508
Housing Color
Yellow
Action
Momentary/Momentary
Hub
1/2 in NPT
Mechanical Interlock
Yes
Operator Color
(2) Black
NEMA Contact Rating Designation
B600/P600
Enclosure Color
Yellow
Housing Material
PET Polyester Blend, Polycarbonate
Number of Speeds
1
Enclosure Material
Thermoplastic
Product Type
Pendant Control Station
Operating Temperature - Minimum
-13 Degrees F
Operator Configuration
(2) Push Buttons
NEMA Enclosure Rating
4
Includes Mechanical Interlock
Mechanical Interlock Included
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V

Description

Pendant Control Station, Number of Operators 2, Number of Pilot Lights 0, Legend Up/Down, Type of Operator Push Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 1NO/1NC, Mechanical Interlock Yes, NEMA Rating 1, 3, 3R, 4, 4X, NEMA Contact Rating Designation B600/P600, IP Rating Not Applicable, Hub 1/2 in NPT, Height 4.69 in, Width 2.19 in, Depth 2.94 in, Enclosure Material Thermoplastic, Enclosure Color Yellow
