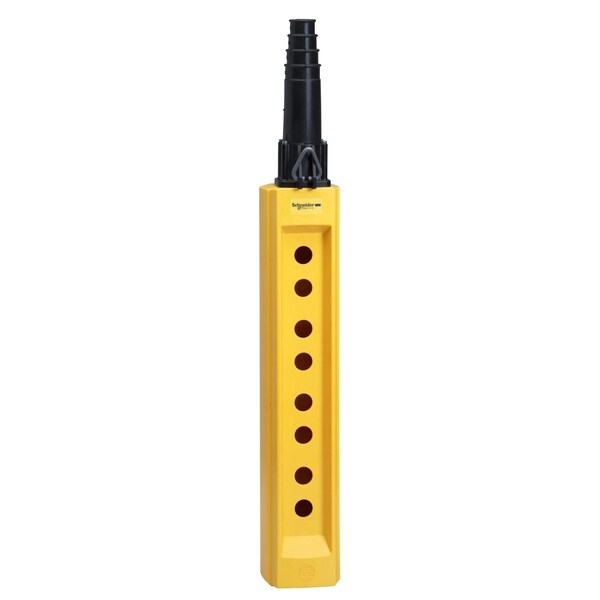

  15. Pendant control station, Harmony XAC, empty, plastic, yellow, 8 cut-outs, cable 22.35mm
Schneider Electric Pendant control station, Harmony XAC, empty, plastic, yellow, 8 cut-outs, cable 22.35mm XACB085 - main

Pendant control station, Harmony XAC, empty, plastic, yellow, 8 cut-outs, cable 22.35mm

  • Mfr # XACB085

  • Zoro # G3129038

product price: $457.99
/ea
Free Shipping & Returns

Key Features

Cable Entry
rubber sleeve with stepped entry 22-35 mm
Standards
CSA C22.2 No 14, EN/IEC 60947-5-1
Ip Degree of Protection
IP65 conforming to IEC 60529
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-25-70°C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACB085
Zoro #
G3129038
UPC #
785901446903
Country of Origin
Czechia

Details

Item
8 Button Pendant
Cable Entry
rubber sleeve with stepped entry 22-35 mm
Standards
CSA C22.2 No 14, EN/IEC 60947-5-1
Ip Degree of Protection
IP65 conforming to IEC 60529
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-25-70°C
Overvoltage Category
class II IEC 61140
Protective Treatment
TH
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Enclosure Material
glass reinforced polyester
Mechanical Durability
1000000 cycles
Number of Cut-Out
8 cut-outs
Electrical Circuit Type
control circuit, power circuit
Range of Product
Harmony XAC
Product or Component Type
pendant control station
Shock Resistance
100 gn IEC 60068-2-27
Ik Degree of Protection
IK08 conforming to EN 50102
Enclosure Type
empty enclosure
Control Station Colour
yellow
Device Short Name
XACB
Vertical Operator Cut-Out Centre
40 mm
Control Station Type
double insulated
Number Of Cut-Out
8 cut-outs
Ik Degree Of Protection
IK08 EN 50102
Guard Rail
without
Product Certifications
CSA type 4
Enclosure material
glass reinforced polyester
Ip Degree Of Protection
IP65 conforming to IEC 60529
Product Or Component Type
pendant control station

Description

8 Button Pendant
