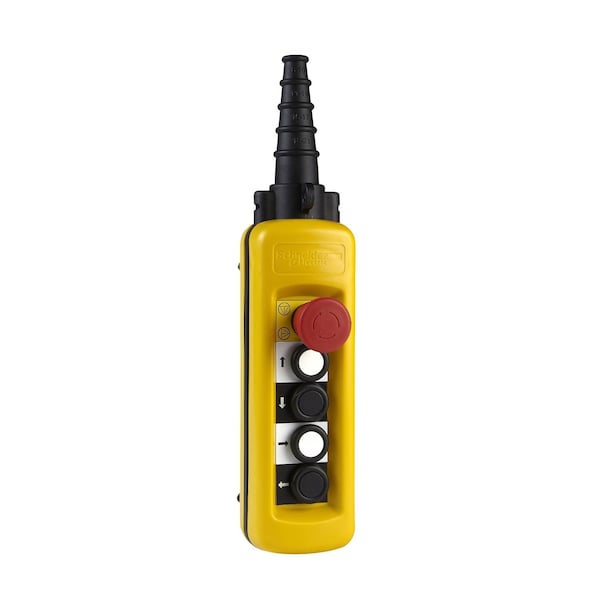

Pendant control station, Harmony XAC, plastic, yellow, 4 push buttons 1NO + 1NC, 1 emergency stop trigger action 1NC

Pendant control station

UL 508, EN/ISO 13850: 2006, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60204-32, CSA C22.2 No 14

polypropylene

Screw Clamp

yellow

ZB2BE102 + ZB2BE101 for each direction, ZB2BE102 + ZB2BE101 for emergency stop, ZB2BE102, ZB2BE102 + ZB2BE101

-40-70°C

(11-12)NC, (13-14)NO

25 MOhm

-25-70°C

with mechanical interlocking between pairs

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Harmony XAC

IP65 conforming to IEC 60529

complete ready for use

class II IEC 61140

emergency stop contact 400 V 3)IEC 60947-1, 600 V 3)

screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

control circuit

4 push-buttons + 1 emergency stop

1000000 cycles

IK08 conforming to EN 50102

6 kV IEC 60947-1

TH

pendant control station

10A

10 A fuse protection cartridge gG

13-13 N push-button, 14-14 N emergency stop

XACA

slow-break

15 gn 10-500 Hz)IEC 60068-2-6

double insulated

(31-32)NC, (11-12)NC, (21-22)NC

40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

rubber sleeve with stepped entry 8-26 mm

first push-button 1 NC + 1 NO raise, slow, second push-button 1 NC + 1 NO lower, slow, third push-button 1 NC + 1 NO left, slow, fourth push-button 1 NC + 1 NO right, slow, emergency stop push-button Ø 40 mm 1 NC trigger action blank

(13-14)NO, (11-12)NC

control of single speed hoist motor

100 gn IEC 60068-2-27

IP65 conforming to IEC 60529

CCC || GOST

pendant control station
