  15. Pendant Station 600Vac 10A Xac +Options

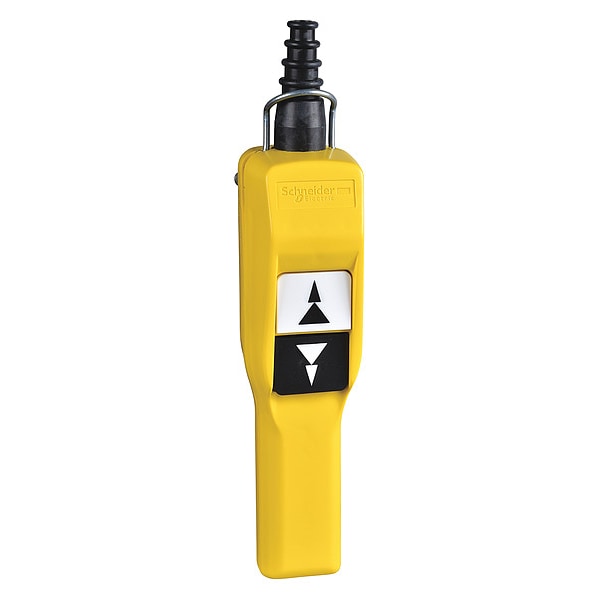

Schneider Electric Pendant Station 600Vac 10A Xac +Options XACA207 - main

Pendant Station 600Vac 10A Xac +Options

  • Mfr # XACA207

  • Zoro # G0562418

product price: $170.99
/ea
Free Shipping & Returns

Key Features

Legend
Up/Down
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
2NO
Number of Operators
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA207
Zoro #
G0562418
UPC #
785901645030
Country of Origin
France

Dimensions

Depth
4.02 in
Height
11.46 in
Width
2.6 in
Manufacturer Warranty Length
18 mo
Overall Height
11.61 in
Hub Size - Maximum
9/16 in
Overall Width
2.05 in
Overall Depth
2.8 in

Details

Item
Pendant Control Station
Legend
Up/Down
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
2NO
Number of Operators
2
NEMA Rating
4X
Hub Style
Dead-End
Series
XACA
Standards
CSA, UL Listed
Housing Color
Yellow
Action
Momentary/Momentary
Hub
9/32 in to 19/32 in
Mechanical Interlock
Yes
IP Rating
IP65
Terminal Connection
screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Housing Material
Polypropylene
Number of Speeds
2
Enclosure Material
Plastic
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V
Enclosure Color
Yellow
Operator Color
Black, White
AC Contact Rating
1.2 A @ 600 V, 3 A @ 250 V
Product Type
Pendant Control Station
Control Station Type
double insulated
Control Station Composition
2 push-buttons
Mechanical Interlocking
with mechanical interlocking
Ambient Air Temperature For Storage
-40-70°C
Connections - Terminals
screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Product Compatibility
ZB2BE101 + ZB2BE201 for each direction
Terminal Identifier
AI1, AI2
Control Type
intuitive
Contact Code Designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Protective Treatment
TH
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Product Certifications
CSA || UL
Control Button Type
first push-button 2 NO (2 step) raise, slow-fast || second push-button 2 NO (2 step) lower, slow-fast
Product Or Component Type
pendant control station
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Control Station Colour
yellow
Shock Resistance
100 gn IEC 60068-2-27
Cable Entry
rubber sleeve with stepped entry 7-15 mm
Maximum Resistance Across Terminals
25 MOhm
Device Short Name
XACA pistol grip
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
[Ithe] Conventional Enclosed Thermal Current
10 A
Enclosure Type
complete ready for use
Mechanical Durability
1000000 cycles
Overvoltage Category
class II IEC 61140
Ik Degree Of Protection
IK08 EN 50102
Ambient Air Temperature For Operation
-25-70°C
Ip Degree Of Protection
IP65 conforming to IEC 60529
Operating Force
13-15 N
Control Station Application
control of 2-speed hoist motor
Short-Circuit Protection
10 A fuse protection cartridge gG
Contact Operation
staggered || slow-break
Electrical Circuit Type
control circuit
Terminals Description Iso N°1
(3-4)NO
Rated Operational Power In W
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Conventional Enclosed Thermal Current
10 A
Terminals Description Iso N°1
(3-4)NO
NEMA Enclosure Rating
1, 4, 4X, 5
Includes Mechanical Interlock
Mechanical Interlock Included
Operating Temperature - Minimum
-13 Degrees F
Operator Configuration
(2) Push Buttons
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated

Description

Pendant Control Station, Number of Operators 2, Number of Pilot Lights 0, Legend Up/Down, Type of Operator Push Button, Action Momentary/Momentary, Operator Color Black, White, Contact Form 2NO, Mechanical Interlock Yes, NEMA Rating 4X, IP Rating IP65, Hub 9/32 in to 19/32 in, Height 11.46 in, Width 2.6 in, Depth 4.02 in, Enclosure Material Plastic, Enclosure Color Yellow, Standards CSA, UL Listed
