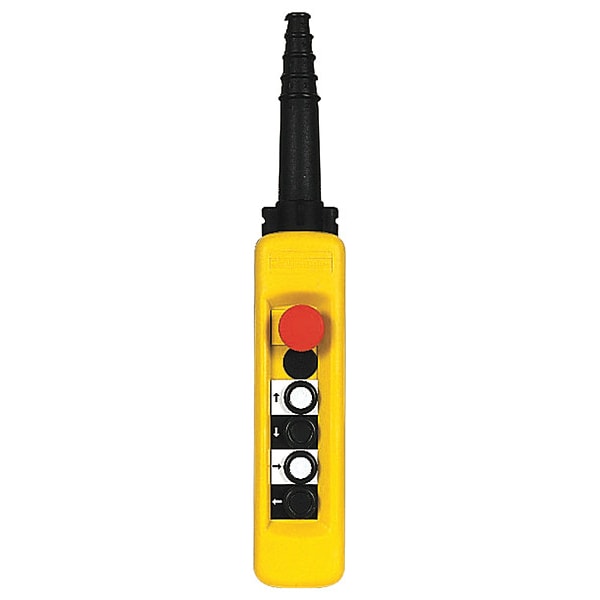

Schneider Electric PendantCntrlStn, DedEnd, 5Buttn, Blk/Wht/Rd XACA4713 - main

PendantCntrlStn, DedEnd, 5Buttn, Blk/Wht/Rd

  • Mfr # XACA4713

  • Zoro # G3464213

product price:  $477.99
/ea
Free Shipping & Returns

Key Features

Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
4NO/1NC
Number of Operators
5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XACA4713
Zoro #
G3464213
UPC #
785901277934
Country of Origin
Czechia

Dimensions

Overall Height
17.3 in
Panel Cutout Diameter
22 mm
Hub Size - Maximum
1 in
Manufacturer Warranty Length
18 mo
Overall Depth
3.55 in
Overall Width
3.15 in

Details

Item
Pendant Control Station
Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
4NO/1NC
Number of Operators
5
Hub Style
Dead-End
Series
XACA
Contact Rating
slow-break
Standards
CCC, GOST
Housing Color
Yellow
Action
Momentary/Momentary/Momentary/Momentary/Maintained
Mechanical Interlock
Yes
Operator Color
(2) Black, (2) White, Red
Enclosure Color
Yellow
Enclosure Material
Plastic
IP Rating
IP65
Application
control of single speed hoist motor
Cable Entry
rubber sleeve with stepped entry 8-26 mm
Number of Speeds
1
Voltage
600 V
Terminal Connection
screw clamp terminal
Housing Material
Polypropylene
Product Type
Pendant Control Station
NEMA Enclosure Rating
4, 4X
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Mechanical Interlock
Mechanical Interlock Included
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V
Maintained Action Release
Twist
AC Contact Rating
1.2 A @ 600 V, 3 A @ 250 V
Operating Temperature - Maximum
158 Degrees F
Operator Configuration
(4) Push Buttons/Mushroom Head Push Button

Description

Pendant Control Station, Number of Operators 5, Number of Pilot Lights 0, Legend Emergency Stop, Type of Operator Push Button, Action Momentary/Momentary/Momentary/Momentary/Maintained, Operator Color (2) Black, (2) White, Red, Contact Form 4NO/1NC, Mechanical Interlock Yes, IP Rating IP65, Enclosure Material Plastic, Enclosure Color Yellow, Standards CCC, GOST

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
