- Item - Relay
- Current Sensing Relay
- AC Contact Rating - Relay
- 8 A @ 250 V
- DC Contact Rating - Relay
- 0.01 A @ 5V
- Contact Form - Relay
- DPDT
- Mounting - Relay
- Surface
- Response Time
- <= 300 ms
- Contact Form
- DPDT
- Item
- Phase Control Relay
- Standards
- C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
- Electrical Connection
- Terminal Strip
- Input or Control Voltage
- 200 to 240 V AC
- Sensing Amp Range
- 0.01 to 8.00 A
- Trip Point
- Adjustable 0.01 to 8.00 A
- Core Type - Relay
- Solid
- Type of Output
- Relay
- Trip Delay
- 0.10 to 30 sec
- Minimum Switching Current
- 10 mA
- Maximum Operating Temperature
- 122 Degrees F
- Input Voltage
- 380 to 480V AC
- Contact Rating (AC)
- 8 A @ 250V
- Current Rating
- 8 A
- Mechanical Operating Durability
- 30,000,000
- Electrical Operating Durability
- 100,000
- Weight
- 3.2 oz
- Mounting Style
- DIN Rail
- Monitored Parameters
- Overvoltage, Phase Failure, Phase Sequence, Undervoltage
- Contact Rating (DC)
- 0.01 A @ 5V
- Maximum Switching Current
- 8 A
- Restart
- Auto
- Housing Material
- Plastic
- IP Rating
- IP40
- Maximum Switching Voltage
- 250V AC
- Restart Time Delay
- 1.5 sec
- Maximum Switching Capacity
- 1,250 VA
- Power Consumption
- 1,250 VA
- Number of Pins
- 9
- Frequency
- 50/60 Hz
- Minimum Operating Temperature
- -4 Degrees F
- Setting Accuracy Of Time Delay
- 0.916666666666667
- Setting Accuracy Of The Switching Threshold
- +/- 10 % of the full scale
- Threshold Adjustment Voltage
- 2...20 % of Un selected
- Overvoltage Category
- III IEC 60664-1 || III UL 508
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Run-Up Delay At Power-Up
- 650 ms
- Ambient Air Temperature For Operation
- -20-50°C 60 Hz || -20-60°C 50 Hz AC/DC
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 3 % time delay
- Nominal Output Current
- 8A
- Measurement Error
- < 1 % over the whole range with voltage variation || < 0.05 %/°C with temperature variation
- Time Delay Type
- adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt

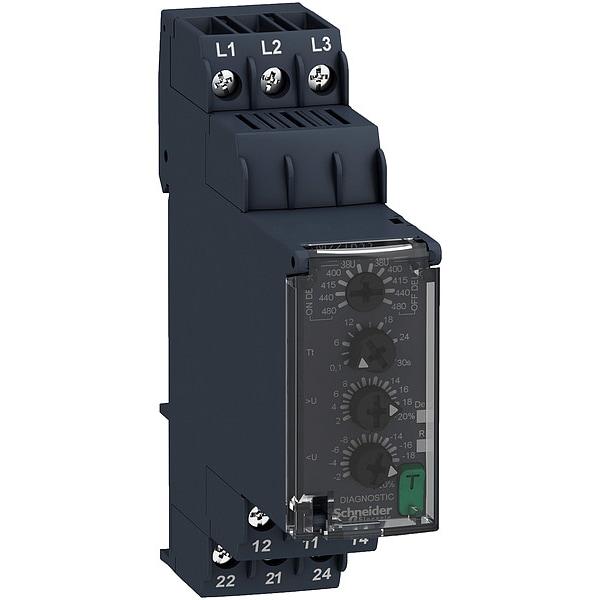

- Relay Name
- RM22TR
- Electrical Durability
- 100000 cycles
- Hysteresis
- 2-2 % fixed selectable
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Control Circuit Voltage Limits
- 20 % + 20 % Un
- Relay Monitored Parameters
- overvoltage and undervoltage detection || phase sequence || phase failure detection
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Connections - Terminals
screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
- Voltage Range
- 380...480 V phase to phase
- Supply Frequency
- 50...60 Hz +/- 10 %
- Time Delay Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
- Contacts Material
- cadmium free
- Immunity To Microbreaks
- 10 ms
- [Us] Rated Supply Voltage
- 380...480 V AC
- Relative Humidity
- 93-97 % 25-55°C IEC 60068-2-30
- Pollution Degree
- 3 IEC 60664-1 || 3 UL 508
- Utilisation Category
- AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- Output Contacts
- 2 C/O
- Switching Capacity In Va
- 2000 VA
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Voltage Detection Threshold
- < 100 V AC
- Relay Type
- control relay
- Product Or Component Type
- 3-phase control relay
- Ambient Air Temperature For Storage
- -40-70°C
- Status Led
- LED (Yellow) relay ON || LED (Green) power ON
- Switching Threshold Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
- Mounting Position
- any position
- Power Consumption In Va
- 15-15 VA 480 V AC 60 Hz
- Mechanical Durability
- 10000000 cycles
- Mounting Support
- 35 mm DIN rail conforming to EN/IEC 60715
- Reset Time
- 1500 ms at maximum voltage
- Product Certifications
- GL || CSA || RCM || CE || EAC || CCC || UL
- Contacts Type And Composition
- 2 C/O
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Measurement Range
- 380...480 V voltage AC
- Insulation Resistance
- > 100 MOhm 500 V DC IEC 60255-27
- Phase
- 3 phase
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Supply Voltage Limits
- 304-576 V AC
- Electromagnetic Compatibility
immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22
