  15. Pilot Light, Blue, 30mm, Incandescent

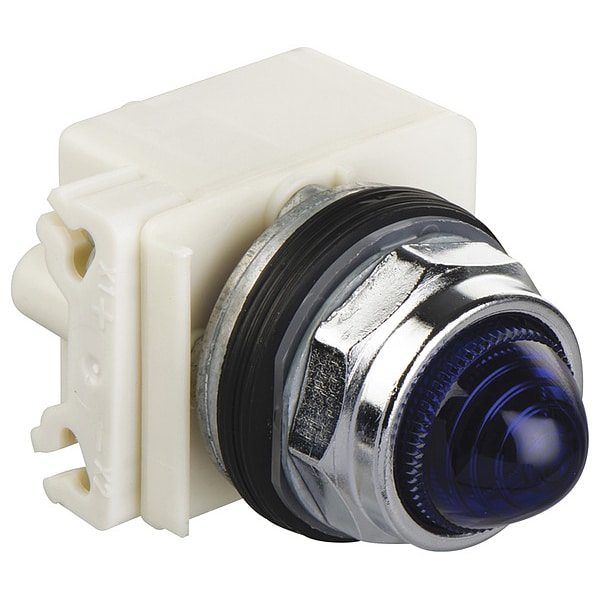

Schneider Electric Pilot Light, Blue, 30mm, Incandescent 9001KP35L9 - main

Pilot Light, Blue, 30mm, Incandescent

  • Mfr # 9001KP35L9

  • Zoro # G3604028

product price: $123.99
/ea
Free Shipping & Returns

Key Features

Voltage
24 to 28V AC/DC
Color
Blue
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KP35L9
Zoro #
G3604028
UPC #
785901625896
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Depth
1.65 in
Overall Width
2.13 in
Overall Height
2.76 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Pilot Light
Voltage
24 to 28V AC/DC
Color
Blue
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Domed
Lamp Module Type
Full Voltage
Basic Material
Metal
Includes
10 A Cartridge Fuse Conforming To IEC 60947-5-1
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Body Material
Metal
IP Rating
IP66
Standards
REACH, RoHS, UL 508, WEEE
Series
9001K
Body Finish
Chrome Plated
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Lens Color
Blue
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lamp Color
Blue
Includes Lamp Module
Lamp Module Included
Includes Lens
Lens Included
Voltage Rating - Maximum
28 V AC/DC
Lamp Voltage - Maximum
28 V AC/DC
Includes Push-To-Test
No Push-To-Test Included

Description

Pilot Light, Voltage 24 to 28V AC/DC, Color Blue, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Domed, Body Material Metal, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Includes 10 A Cartridge Fuse Conforming To IEC 60947-5-1, Standards REACH, RoHS, UL 508, WEEE
