  15. Pilot Light, Blue, LED

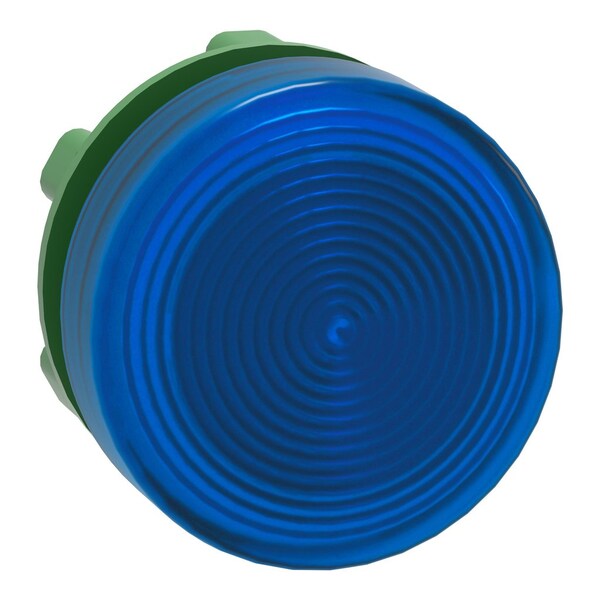

Schneider Electric Pilot Light, Blue, LED ZB5AV063S - main

Pilot Light, Blue, LED

  • Mfr # ZB5AV063S

  • Zoro # G0127170

product price: $9.35
/ea

Key Features

Color
Blue
Lamp Type
LED
Shape
Round
Lens Material
Plastic
Bezel
Dark Grey Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AV063S
Zoro #
G0127170
UPC #
785901584933
Country of Origin
France

Dimensions

Size
22 mm
Compatible Panel Cutout Diameter
22 mm
Mounting Diameter
0.87 in (22 mm)

Details

Item
Pilot Light Head
Color
Blue
Lamp Type
LED
Shape
Round
Lens Material
Plastic
Bezel
Dark Grey Plastic
Lens Type
Fresnel
Basic Material
Plastic
IP Rating
IP66, IP67, IP69, IP69K
NEMA Rating
13, 4X
Body Material
Plastic
Suggested Lamp Type
Mfr. Series ZB4BV Mount Base and Integral LED Module
Standards
CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
Product Type
Pilot Light Head
NEMA Enclosure Rating
13, 4X
Compatible with Series
XB5
Compatible Lamp Type
Universal LED Module
Light Head Material
Plastic
Product Compatibility
Universal LED
Station Name
XALD 1 to 5 cut-outs; XALK 2 to 5 cut-outs
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Product Or Component Type
Head for pilot light
Overvoltage Category
Class II IEC 60536
IK Degree Of Protection
IK05 IEC 50102
Protective Treatment
TH
Bezel Material
Dark Gray plastic
NEMA Degree Of Protection
NEMA 13; NEMA 4X
Device Presentation
Basic element
Environmental Characteristic
High ambient lighting environment
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Electrical Composition Code
P1 front mounting integral LED; P2 front mounting integral LED and transformer; PF1 front mounting integral LED; PR1 rear mounting integral LED
Vibration Resistance
5 gn 2 to 500 Hz)IEC 60068-2-6
Head Type
Standard
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
IP Degree Of Protection
IP66 IEC 60529; IP67 IEC 60529; IP69 IEC 60529; IP69K ISO 20653
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)

Description

Pilot Light Head, Size 22 mm, Color Blue, Shape Round, Lens Type Fresnel, Basic Material Plastic, NEMA Rating 13, 4X, Lamp Type LED, Lens Material Plastic, Body Material Plastic, Suggested Lamp Type Mfr. Series ZB4BV Mount Base and Integral LED Module, IP Rating IP66, IP67, IP69, IP69K, Standards CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
