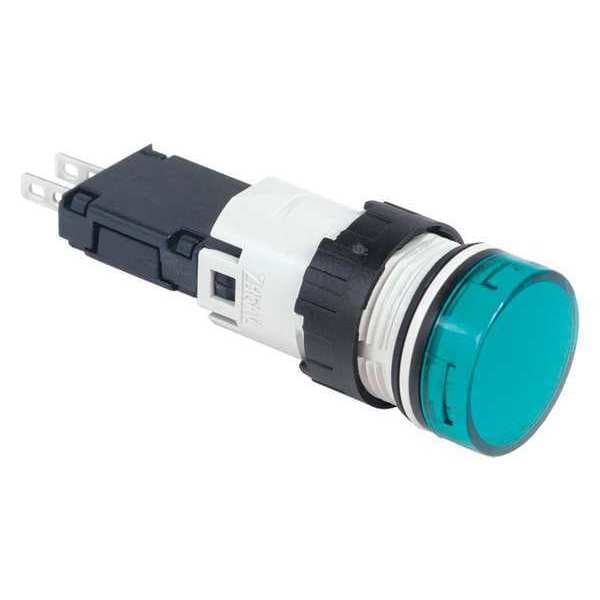

Schneider Electric Pilot Light Complete, LED, Green XB6AV3GB - main

Pilot Light Complete, LED, Green

  • Mfr # XB6AV3GB

  • Zoro # G0105047

product price: $22.59
/ea

Key Features

Voltage
120V AC
Color
Green
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6AV3GB
Zoro #
G0105047
UPC #
785901433231
Country of Origin
France

Dimensions

Size
16 mm
Height
18 mm
Width
18 mm
Length
57 mm
Mounting Diameter
0.63 in (16 mm)
Depth
2.24 in (57 mm)
Overall Depth
2.24 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
16 mm
Overall Height
0.71 in
Overall Width
0.71 in

Details

Item
Pilot Light
Voltage
120V AC
Color
Green
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
Contact Form
(X1-X2)PL
Lens Material
Plastic
Bezel
Plastic
Lens Type
Smooth
Lamp Module Type
Transformer
Basic Material
Plastic
Replacement Lamps
4VW69
Body Material
Plastic
Lamp Voltage
120V AC
Standards
CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
IP Rating
IP65
NEMA Rating
1, 12
Type
Steady Signal
Operating Position
Any position
Surge Withstand
1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5
Product Certifications
CCC; GOST; UL; CSA
Protective Treatment
TC
Light Block Supply
Direct
Rated Supply Voltage
48 to 120 V AC
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
IP Degree Of Protection
IP65 IEC 60529
Resistance To Fast Transients
2 kV IEC 61000-4-4
Product Or Component Type
Complete pilot light
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Electrical Shock Protection Class
Class II IEC 61140
Current Consumption
15 mA
Bulb Base
Integral LED
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
Signalling Type
Steady
Supply Voltage Limits
6 to 30 V AC/DC
Electromagnetic Emission
Class B EN 55011
Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Voltage Rating - Maximum
120 V AC
NEMA Enclosure Rating
13, 4, 4X
Lens Color
Green
Lamp Color
Green
Lamp Voltage - Maximum
120 V AC
Includes Push-To-Test
No Push-To-Test Included
Includes Lens
Lens Included
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Series
XB6
Includes Lamp Module
Lamp Module Included

Description

Pilot Light, Voltage 120V AC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Faston Connector, Lens Material Plastic, 16 mm, Lamp Module Type Transformer, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 120V AC, Replacement Lamps 4VW69, Body Material Plastic, NEMA Rating 1, 12, IP Rating IP65, Standards CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
