  15. Pilot Light Complete, LED, Red

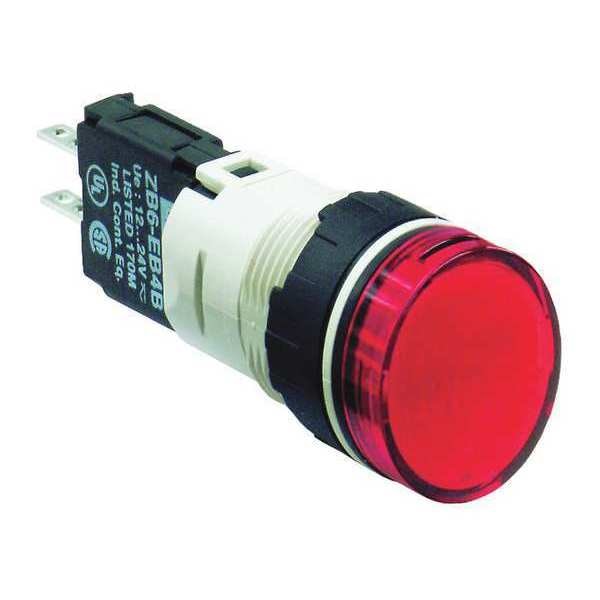

Schneider Electric Pilot Light Complete, LED, Red XB6AV4BB - main

Pilot Light Complete, LED, Red

  • Mfr # XB6AV4BB

  • Zoro # G0105071

product price: $22.59
/ea

Key Features

Voltage
24V AC/DC
Color
Red
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6AV4BB
Zoro #
G0105071
UPC #
785901325611
Country of Origin
Mexico

Dimensions

Size
16 mm
Length
57 mm
Width
18 mm
Height
18 mm
Depth
2.24 in (57 mm)
Mounting Diameter
0.63 in (16 mm)
Overall Width
0.71 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
16 mm
Overall Depth
2.24 in
Overall Height
0.71 in

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Red
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
Contact Form
(+ -)PL
Lens Material
Plastic
Bezel
Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Plastic
Replacement Lamps
4VW69
Body Material
Plastic
Lamp Voltage
24V AC/DC
Standards
CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
IP Rating
IP65
NEMA Rating
1, 12
Type
Steady Signal
Protective Treatment
TC
Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Current Consumption
15 mA
Supply Voltage Limits
6 to 30 V AC/DC
Rated Supply Voltage
12 to 24 V AC/DC
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
IP Degree Of Protection
IP65 IEC 60529
Surge Withstand
1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Operating Position
Any position
Bulb Base
Integral LED
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Rated Insulation Voltage
250 V 2)IEC 60947-1
Resistance To Fast Transients
2 kV IEC 61000-4-4
Electromagnetic Emission
Class B IEC 55011
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Electrical Shock Protection Class
Class II IEC 61140
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications
GOST; CSA; CCC; UL
Light Block Supply
Direct
Product Or Component Type
Complete pilot light
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Signalling Type
Steady
Includes Lamp Module
Lamp Module Included
NEMA Enclosure Rating
13, 4, 4X
Lamp Voltage - Maximum
24 V AC/DC
Voltage Rating - Maximum
24 V AC/DC
Includes Lens
Lens Included
Lens Color
Red
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Series
XB6
Includes Push-To-Test
No Push-To-Test Included
Lamp Color
Red

Description

Pilot Light, Voltage 24V AC/DC, Color Red, Lamp Type LED, Shape Round, Terminal Connection Faston Connector, Lens Material Plastic, 16 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 24V AC/DC, Replacement Lamps 4VW69, Body Material Plastic, NEMA Rating 1, 12, IP Rating IP65, Standards CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
