  13. Pilot Light Complete, Red, 22mm
Shop All Indicator Lights
Schneider Electric

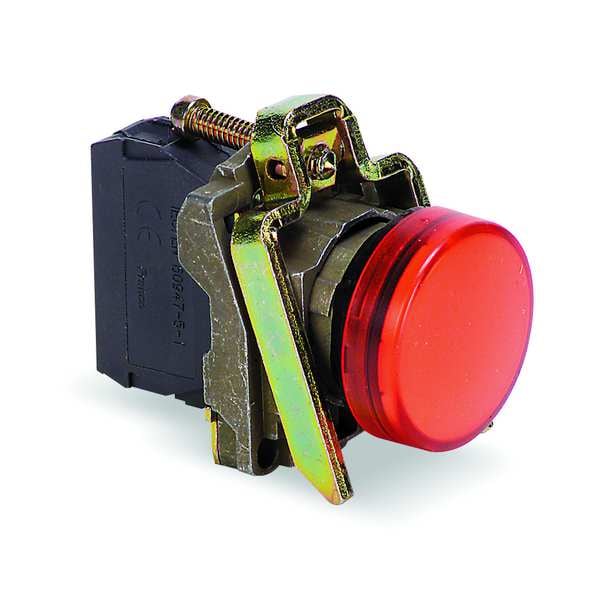

Pilot Light Complete, Red, 22mm

original price: $45.05
10% off
new price: $40.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 250V AC
  • Color Red
  • Lamp Type No Lamp Module Included
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 22 mm
Width 30 mm
Length 55 mm
Height 47 mm
Mounting Diameter 0.87 in (22 mm)
Depth 2.17 in (55 mm)
Panel Cutout Diameter 22 mm
Manufacturer Warranty Length 18 mo
Overall Width 1.18 in
Overall Depth 2.17 in
Overall Height 1.85 in

Details

Item Pilot Light
Voltage 250V AC
Color Red
Lamp Type No Lamp Module Included
Shape Round
Terminal Connection Screw Clamp
Contact Form (X1-X2)PL
Lens Material Plastic
Bezel Chromium Plated Metal
Lens Type Smooth
Lamp Module Type No Lamp Module Included
Basic Material Metal
IP Rating IP66, IP67, IP69, IP69K
Standards CSA, REACH, RoHS, UL Listed, WEEE
Body Material Metal
Lamp Voltage 250V AC
Material Chrome
For Use With Schneider BA9 Light Modules
NEMA Rating 13, 4, 4X
Type Steady Signal
Rated Supply Voltage Less than or Equal to 250 V
Light Block Supply Direct Less than 2.4 W
Bulb Base BA 9s
Signalling Type Steady
Ambient Air Temperature For Operation -40 to 131°F (-40 to 55°C)
Vibration Resistance 5 gn 12 to 500 Hz)IEC 60068-2-6
Product Certifications UL Listed; CSA
Rated Impulse Withstand Voltage 4 kV IEC 60947-1
Electrical Shock Protection Class Class I IEC 60536
Protective Treatment TH
NEMA Degree Of Protection NEMA 13; NEMA 4X
IP Degree Of Protection IP66 IEC 60529; IP67; IP69; IP69K
Device Presentation Complete product
Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Rated Insulation Voltage 250 V 3)IEC 60947-1
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
IK Degree Of Protection IK06 IEC 50102
Ambient Air Temperature For Storage -40 to 158°F (-40 to 70°C)
Product Or Component Type Pilot light
Fixing Collar Material Zamak
Light Source Bulb not included
Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Head Type Standard
Lamp Voltage - Maximum 250 V AC
Includes Lamp Module Lamp Module Included
Voltage Rating - Maximum 250 V AC
NEMA Enclosure Rating 13, 4X
Includes Lens Lens Included
Lens Color Red
Body Finish Chrome Plated
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Series XB4
Lamp Color Red

Description

Pilot Light, Voltage 250V AC, Color Red, Lamp Type No Lamp Module Included, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type No Lamp Module Included, Basic Material Metal, Lens Type Smooth, Lamp Voltage 250V AC, Body Material Metal, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Standards CSA, REACH, RoHS, UL Listed, WEEE
