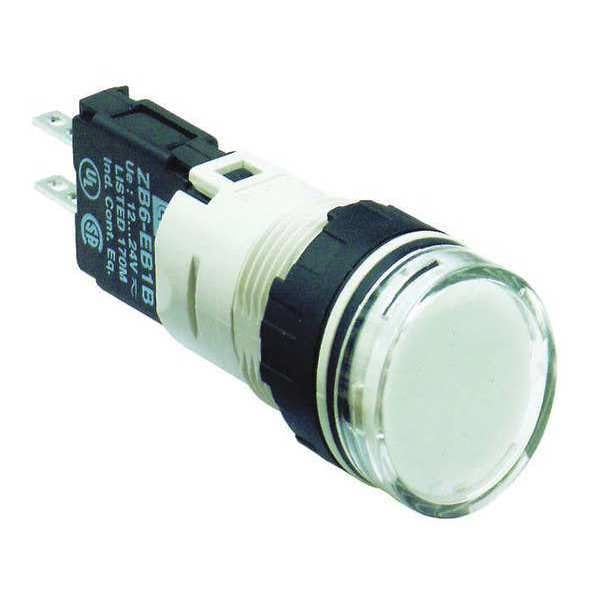

Schneider Electric Pilot Light Complete, LED, White XB6AV1BB - main

Pilot Light Complete, LED, White

  • Mfr # XB6AV1BB

  • Zoro # G0105099

product price: $22.59
/ea

Key Features

Voltage
24V AC/DC
Color
White
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XB6AV1BB
Zoro #
G0105099
UPC #
785901356455
Country of Origin
Mexico

Dimensions

Size
16 mm
Height
18 mm
Width
18 mm
Length
57 mm
Mounting Diameter
0.63 in (16 mm)
Depth
2.24 in (57 mm)
Overall Depth
2.24 in
Overall Width
0.71 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
16 mm
Overall Height
0.71 in

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
White
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
Contact Form
(+ -)PL
Lens Material
Plastic
Bezel
Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Plastic
Lamp Voltage
24V AC/DC
Standards
CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
IP Rating
IP65
Body Material
Plastic
NEMA Rating
1, 12
Replacement Lamps
4VW69
Type
Steady Signal
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
Rated Supply Voltage
12 to 24 V AC/DC
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
IP Degree Of Protection
IP65 IEC 60529
Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Light Block Supply
Direct
Surge Withstand
1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Product Certifications
CCC; GOST; CSA; UL
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Product Or Component Type
Complete pilot light
Protective Treatment
TC
Electrical Shock Protection Class
Class II IEC 61140
Supply Voltage Limits
6 to 30 V AC/DC
Signalling Type
Steady
Current Consumption
15 mA
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Operating Position
Any position
Bulb Base
Integral LED
Resistance To Fast Transients
2 kV IEC 61000-4-4
Electromagnetic Emission
Class B EN 55011
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Series
XB6
Lens Color
White
Lamp Voltage - Maximum
24 V AC/DC
Voltage Rating - Maximum
24 V AC/DC
Includes Push-To-Test
No Push-To-Test Included
Lamp Color
White
Includes Lamp Module
Lamp Module Included
Includes Lens
Lens Included
NEMA Enclosure Rating
13, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof

Description

Pilot Light, Voltage 24V AC/DC, Color White, Lamp Type LED, Shape Round, Terminal Connection Faston Connector, Lens Material Plastic, 16 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 24V AC/DC, Replacement Lamps 4VW69, Body Material Plastic, NEMA Rating 1, 12, IP Rating IP65, Standards CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
