Schneider Electric

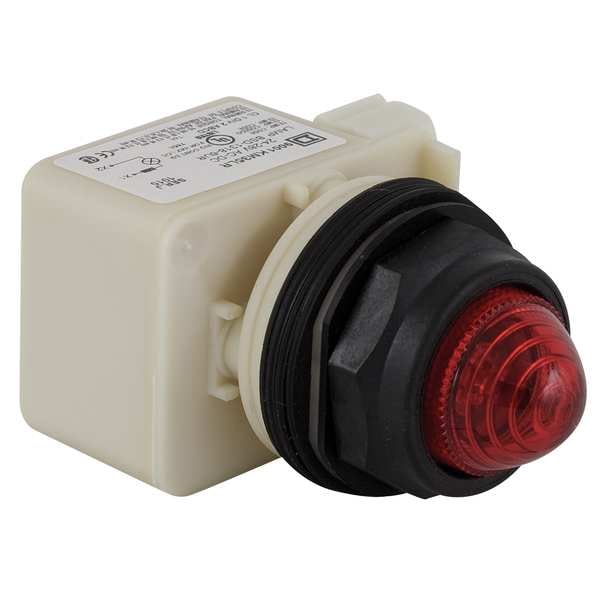

Pilot Light Complete, Red, LED

product price: $135.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color Red
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 30 mm
Overall Depth 1.65 in
Overall Height 2.76 in
Panel Cutout Diameter 30 mm
Manufacturer Warranty Length 18 mo
Overall Width 2.13 in

Details

Item Pilot Light
Voltage 24V AC/DC
Color Red
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Lens Material Polycarbonate
Bezel Plastic
Lens Type Domed
Lamp Module Type Full Voltage
Basic Material Plastic
Standards REACH, RoHS, UL 508, WEEE
IP Rating IP66
Body Material Plastic
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Lamp Voltage 24V AC/DC
Includes Light Module and LED Lamp
Lamp Voltage - Maximum 24 V AC/DC
Includes Lens Lens Included
Includes Lamp Module Lamp Module Included
Voltage Rating - Maximum 28 V AC/DC
Lamp Color Red
Includes Push-To-Test No Push-To-Test Included
Lens Color Red
Series 9001SK
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X

Description

Pilot Light, Voltage 24V AC/DC, Color Red, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Domed, Lamp Voltage 24V AC/DC, Replacement Lamps N/A, Body Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Includes Light Module and LED Lamp, Standards REACH, RoHS, UL 508, WEEE
