  13. Pilot Light Complete, Yellow, 22mm
Shop All Indicator Lights
Schneider Electric

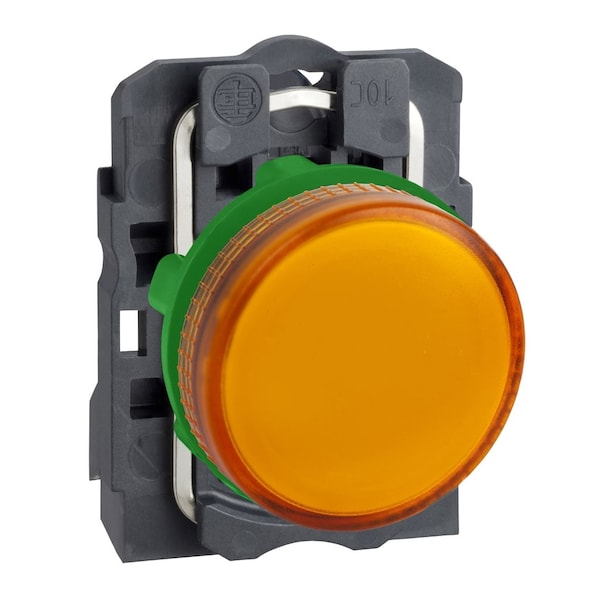

Pilot Light Complete, Yellow, 22mm

product price: $32.00
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lamp Voltage 250V AC
  • Terminal Connection Screw Clamp
  • Voltage 250V AC
  • Body Material Plastic
  • Lens Material Plastic
See all product information

Product Information

Dimensions

Size 22 mm
Overall Height 1.65 in
Manufacturer Warranty Length 18 mo
Overall Width 1.18 in
Panel Cutout Diameter 22 mm
Overall Depth 2.17 in

Details

Lamp Voltage 250V AC
Terminal Connection Screw Clamp
Voltage 250V AC
Body Material Plastic
Lens Material Plastic
Basic Material Plastic
Lens Type Smooth
Shape Round
NEMA Rating 13, 4, 4X
Includes Lamp Module Lamp Module Included
Lamp Type No Lamp Module Included
Lamp Module Type No Lamp Module Included
IP Rating IP66, IP67, IP69, IP69K
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Lens Color Orange
NEMA Enclosure Rating 13, 4X
Voltage Rating - Maximum 250 V AC
Lamp Color Orange
Lamp Voltage - Maximum 250 V AC
Series XB5
Item Pilot Light
Standards CSA, REACH, RoHS, UL Listed, WEEE
Includes Lens Lens Included

Description

Pilot Light, Voltage 250V AC, Color Yellow, Lamp Type No Lamp Module Included, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type No Lamp Module Included, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 250V AC, Body Material Plastic, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Standards CSA, REACH, RoHS, UL Listed, WEEE
