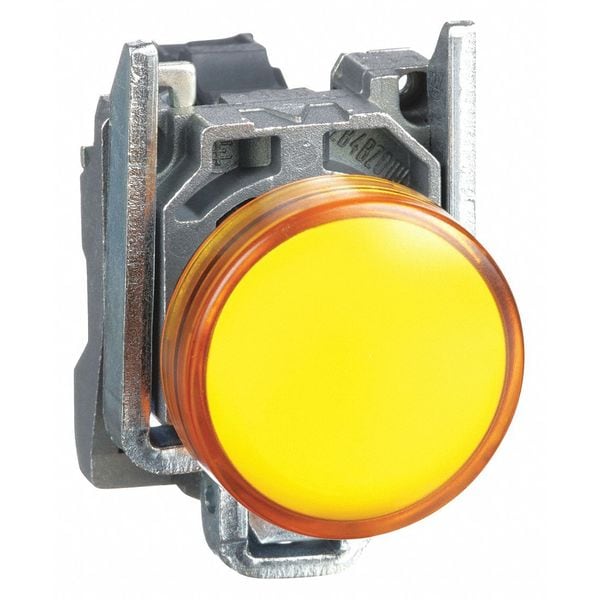

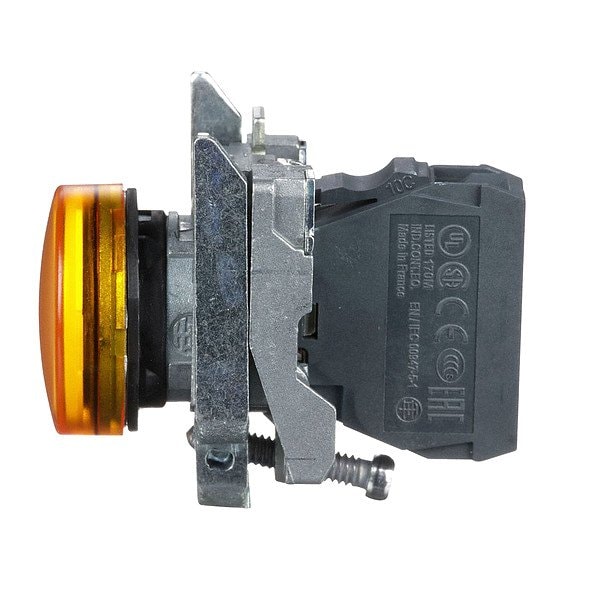

Schneider Electric Pilot Light Complete, Yellow, LED XB4BVG5 - main

Pilot Light Complete, Yellow, LED

  • Mfr # XB4BVG5

  • Zoro # G1778016

product price: $57.35
/ea

Key Features

Voltage
110 to 120V AC
Color
Yellow
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4BVG5
Zoro #
G1778016
UPC #
785901381389
Country of Origin
France

Dimensions

Size
22 mm
Height
47 mm
Width
30 mm
Length
54 mm
Mounting Diameter
0.87 in (22 mm)
Depth
2.13 in (54 mm)
Overall Depth
2.13 in
Overall Height
1.85 in
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Pilot Light
Voltage
110 to 120V AC
Color
Yellow
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Contact Form
(X1-X2)PL
Bezel
Chromium Plated Metal
Lens Material
Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Metal
Includes
Light Module
IP Rating
IP66, IP67, IP69, IP69K
Standards
CSA, REACH, RoHS, UL Listed, WEEE
NEMA Rating
13, 4, 4X
Body Material
Metal
Average Life
100000 hr
Type
Steady Signal
Surge Withstand
1 kV IEC 61000-4-5
Service Life
100000 h at rated voltage and 25°C
IK Degree Of Protection
IK06 IEC 50102
Device Presentation
Complete product
Electrical Shock Protection Class
Class I IEC 60536
Product Certifications
UL Listed; CSA
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Resistance To Fast Transients
2 kV IEC 61000-4-4
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Head Type
Standard
Light Source Color
Orange
Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Electromagnetic Emission
Class B IEC 55011
Protective Treatment
TH
Bulb Base
Integral LED
Supply Voltage Limits
100 to 132 V AC
IP Degree Of Protection
IP66 IEC 60529; IP67; IP69; IP69K
Cap/Operator Or Lens Color
Orange
NEMA Degree Of Protection
NEMA 13; NEMA 4X
Signalling Type
Steady
Vibration Resistance
5 gn 12 to 500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Light Source
Universal LED
Current Consumption
14 mA
Product Or Component Type
Pilot light
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Rated Supply Voltage
110 to 120 V AC 50/60 Hz
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Fixing Collar Material
Zamak
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Rated Insulation Voltage
250 V 3)IEC 60947-1
Voltage Rating - Maximum
120 V AC
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Lamp Module
Lamp Module Included
Includes Push-To-Test
No Push-To-Test Included
NEMA Enclosure Rating
13, 4X
Lens Color
Orange
Series
XB4
Lamp Color
Orange
Body Finish
Chrome Plated
Includes Lens
Lens Included

Description

Pilot Light, Voltage 110 to 120V AC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Smooth, Body Material Metal, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Includes Light Module, Standards CSA, REACH, RoHS, UL Listed, WEEE
