  8. Pilot light, Harmony 9001SK, plastic, polycarbonate, domed, green, 30mm, 220-240V

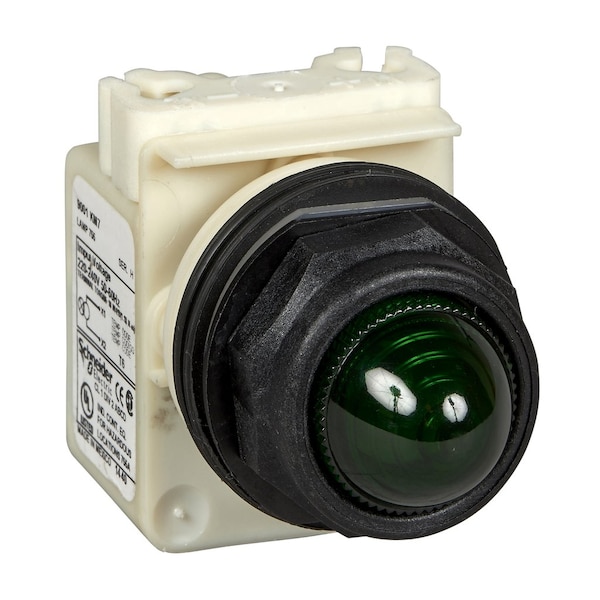

Schneider Electric Pilot light, Harmony 9001SK, plastic, polycarbonate, domed, green, 30mm, 220-240V 9001SKP7G9 - main

Pilot light, Harmony 9001SK, plastic, polycarbonate, domed, green, 30mm, 220-240V

  • Mfr # 9001SKP7G9

  • Zoro # G3996149

product price:  $150.99
/ea
Free Shipping & Returns

Key Features

Voltage
220 to 240V AC
Color
Green
Lamp Type
incandescent
Shape
Round
Terminal Connection
Screw Clamp terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001SKP7G9
Zoro #
G3996149
UPC #
-
Country of Origin
Mexico

Dimensions

Size
30 mm
Width
54 mm
Height
70 mm

Details

Item
Octagonal pilot light 0 30 - green - inc
Voltage
220 to 240V AC
Color
Green
Lamp Type
incandescent
Shape
Round
Terminal Connection
Screw Clamp terminals
Lens Material
Polycarbonate
Bezel
Plastic
Lens Type
Domed
IP Rating
IP66
Hz
50/60 Hz
Standards
UL 508; JIS C 852; EN/IEC 60947-5-4; JIS C8201-5-1; EN/IEC 60947-1; CSA C22.2 No 14; EN/IEC 60947-5-1; JIS C8201-1; NEMA
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X
[Us] Rated Supply Voltage
220...240 V
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-40-70°C
Supply Frequency
50...60 Hz
Protective Treatment
TC
Bulb Base
BA 9s
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Ip Degree of Protection
IP66 IEC 60529
[Ith] Conventional Free Air Thermal Current
10A
Electrical Shock Protection Class
class II IEC 61140
Product or Component Type
pilot light
Nema Degree of Protection
NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Range of Product
Harmony 9001SK
Shock Resistance
50 gn IEC 60068-2-27
Light Source
incandescent bulb
Device Presentation
complete product
Operating Position
any position
[Ui] Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Connections - Terminals
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Shape of Screw Head
cross slotted
Device Short Name
9001SK
Ambient Air Temperature For Operation
-25-70°C
Light Block Supply
via integral transformer 230 V AC 50/60 Hz 6 V)

Description

Octagonal pilot light 0 30 - green - inc
