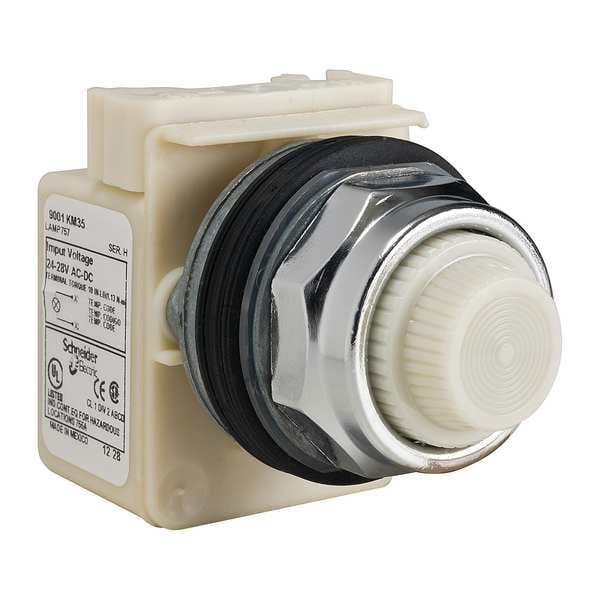

Schneider Electric Pilot Light, Incan, White, 24-28VAC/DC 9001KP35W31 - main

Pilot Light, Incan, White, 24-28VAC/DC

  • Mfr # 9001KP35W31

  • Zoro # G6342576

product price:  $113.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
White
Action
Normal
Lamp Type
Incandescent
Shape
Round
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001KP35W31
Zoro #
G6342576
UPC #
785901032915
Country of Origin
Mexico

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Overall Depth
1.62 in
Overall Width
2.13 in
Manufacturer Warranty Length
18 mo
Overall Height
3.02 in

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
White
Action
Normal
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Fresnel
Lamp Module Type
Full Voltage
Basic Material
Metal
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Body Material
Zinc Die Cast
IP Rating
IP66
Replacement Lamps
2FMP7
Lamp Voltage
24V AC/DC
Voltage Rating - Maximum
28 V AC/DC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Includes Lens
Lens Included
Lamp Color
White
Includes Lamp Module
Lamp Module Included
Series
9001K
Includes Push-To-Test
No Push-To-Test Included
Body Finish
Chrome Plated
Lens Color
White
Lamp Voltage - Maximum
28 V
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof

Description

Pilot Light, Voltage 24V AC/DC, Color White, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 24V AC/DC, Replacement Lamps 2FMP7, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
