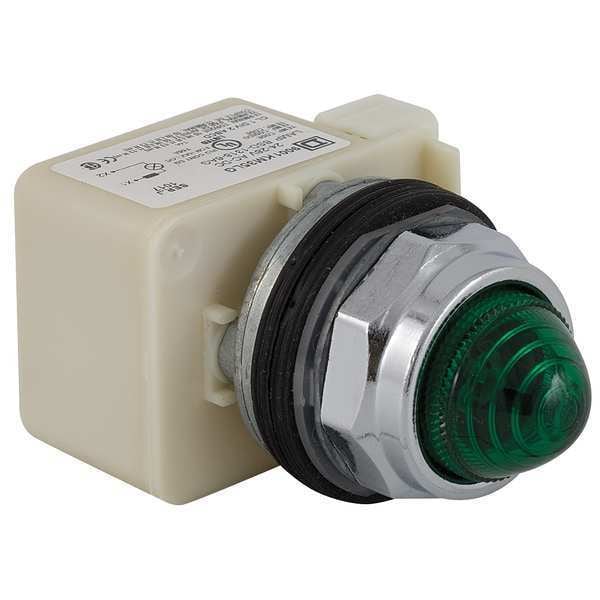

Schneider Electric Pilot Light, LED, 24V, 30mm, Chrome, GR 9001KP35LGG9 - main

Pilot Light, LED, 24V, 30mm, Chrome, GR

  • Mfr # 9001KP35LGG9

  • Zoro # G1107111

product price:  $137.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Green
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001KP35LGG9
Zoro #
G1107111
UPC #
785901186502
Country of Origin
Mexico

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Overall Height
2.76 in
Overall Depth
1.65 in
Overall Width
2.13 in
Manufacturer Warranty Length
18 mo

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Green
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Polycarbonate
Bezel
Metal
Lens Type
Domed
Lamp Module Type
Full Voltage
Basic Material
Metal
Lamp Voltage
24V AC/DC
IP Rating
IP66
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Standards
REACH, RoHS, UL 508, WEEE
Includes
Light Module and LED Lamp
Body Material
Zinc Die Cast
Voltage Rating - Maximum
28 V AC/DC
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Includes Lamp Module
Lamp Module Included
Lamp Color
Green
Body Finish
Chrome Plated
Lens Color
Green
Series
9001K
Includes Push-To-Test
No Push-To-Test Included
Lamp Voltage - Maximum
28 V AC/DC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Includes Lens
Lens Included

Description

Pilot Light, Voltage 24V AC/DC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Domed, Lamp Voltage 24V AC/DC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Includes Light Module and LED Lamp, Standards REACH, RoHS, UL 508, WEEE
