  13. Pilot Light, LED, Green, 22mm, 24VAC/DC
Shop All Indicator Lights
Schneider Electric

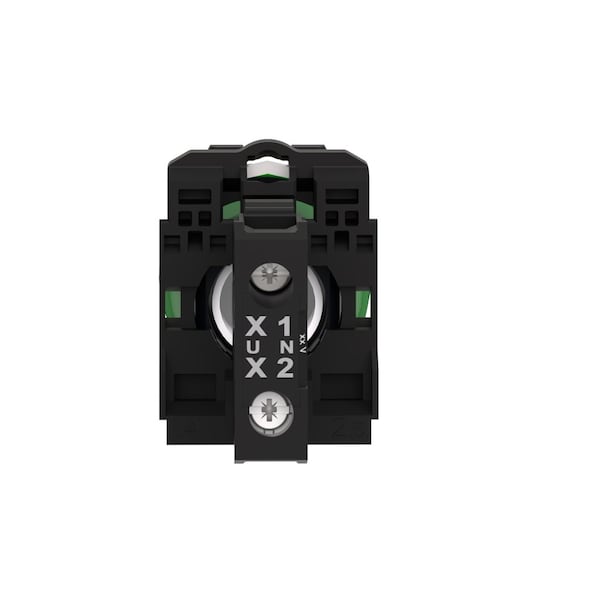

Pilot Light, LED, Green, 22mm, 24VAC/DC

product price: $47.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC
  • Color Green
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 22 mm
Height 42 mm
Length 54 mm
Width 30 mm
Manufacturer Warranty Length 18 mo
Overall Width 1.18 in
Overall Height 1.65 in
Overall Depth 2.13 in
Panel Cutout Diameter 22 mm

Details

Item Pilot Light
Voltage 24V AC
Color Green
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Contact Form (X1-X2)PL
Bezel Dark Grey Plastic
Lens Material Plastic
Lens Type Smooth
Lamp Module Type Full Voltage
Basic Material Plastic
NEMA Rating 13, 4, 4X
Standards CSA, REACH, RoHS, UL Listed, WEEE
IP Rating IP66, IP67, IP69, IP69K
Body Material Plastic
Includes Light Module and Head, Mounting Base
Average Life 100000 hr
Type Steady Signal
NEMA Enclosure Rating 13, 4X
Series XB5
Includes Push-To-Test No Push-To-Test Included
Lamp Color Green
Includes Lens Lens Included
Lens Color Green
Includes Lamp Module Lamp Module Included
Voltage Rating - Maximum 24 V AC/DC
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof

Description

Pilot Light, Voltage 24V AC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Body Material Plastic, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Includes Light Module and Head, Mounting Base, Standards CSA, REACH, RoHS, UL Listed, WEEE
