  15. Pilot Light, LED, Red, 22mm, 24VAC/DC

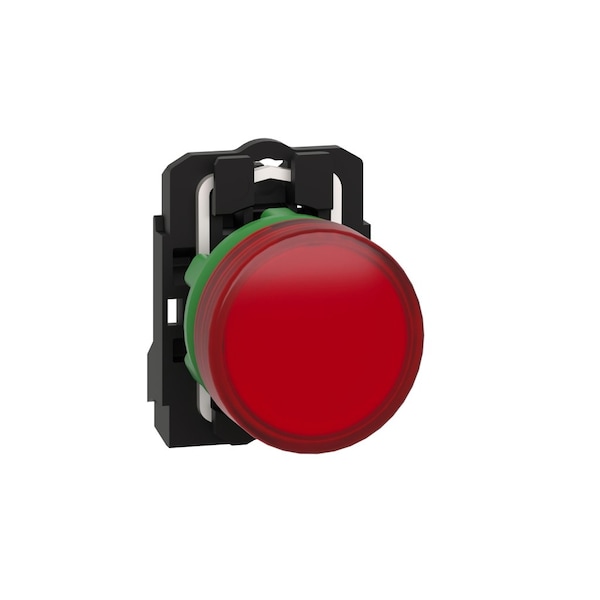

Schneider Electric Pilot Light, LED, Red, 22mm, 24VAC/DC XB5AVB4 - main

Pilot Light, LED, Red, 22mm, 24VAC/DC

  • Mfr # XB5AVB4

  • Zoro # G0768555

product price: $59.89
/ea

Key Features

Voltage
24V AC
Color
Red
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5AVB4
Zoro #
G0768555
UPC #
785901384007
Country of Origin
France

Dimensions

Size
22 mm
Length
54 mm
Width
30 mm
Height
42 mm
Overall Width
1.18 in
Overall Depth
2.13 in
Overall Height
1.65 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Pilot Light
Voltage
24V AC
Color
Red
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Contact Form
(X1-X2)PL
Bezel
Dark Grey Plastic
Lens Material
Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Plastic
NEMA Rating
13, 4, 4X
Standards
CSA, REACH, RoHS, UL Listed, WEEE
IP Rating
IP66, IP67, IP69, IP69K
Body Material
Plastic
Includes
Light Module and Head, Mounting Base
Average Life
100000 hr
Type
Steady Signal
Includes Lens
Lens Included
Lamp Color
Red
Series
XB5
Includes Lamp Module
Lamp Module Included
Lens Color
Red
Includes Push-To-Test
No Push-To-Test Included
Voltage Rating - Maximum
24 V AC/DC
NEMA Enclosure Rating
13, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof

Description

Pilot Light, Voltage 24V AC, Color Red, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Body Material Plastic, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Includes Light Module and Head, Mounting Base, Standards CSA, REACH, RoHS, UL Listed, WEEE
