  13. Pilot Light, LED, White, 22mm, 110-120VAC
Shop All Indicator Lights
Schneider Electric

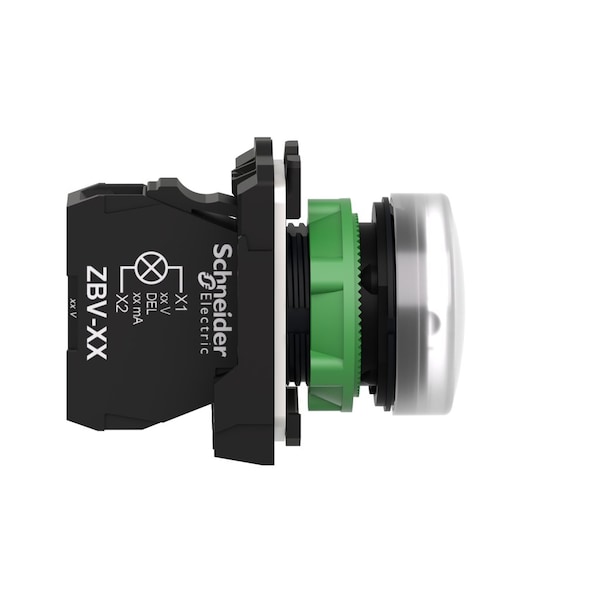

Pilot Light, LED, White, 22mm, 110-120VAC

product price: $47.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 110 to 120V AC
  • Color White
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 22 mm
Length 54 mm
Height 42 mm
Width 30 mm
Manufacturer Warranty Length 18 mo
Overall Depth 2.13 in
Panel Cutout Diameter 22 mm
Overall Height 1.65 in
Overall Width 1.18 in

Details

Item Pilot Light
Voltage 110 to 120V AC
Color White
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Contact Form (X1-X2)PL
Lens Material Plastic
Bezel Dark Grey Plastic
Lens Type Smooth
Lamp Module Type Full Voltage
Basic Material Plastic
Includes Light Module and Head, Mounting Base
Standards CSA, REACH, RoHS, UL Listed, WEEE
Body Material Plastic
IP Rating IP66, IP67, IP69, IP69K
NEMA Rating 13, 4, 4X
Average Life 100000 hr
Type Steady Signal
Lens Color White
Series XB5
Lamp Color White
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
NEMA Enclosure Rating 13, 4X
Voltage Rating - Maximum 120 V AC
Includes Lens Lens Included
Includes Push-To-Test No Push-To-Test Included
Includes Lamp Module Lamp Module Included

Description

Pilot Light, Voltage 110 to 120V AC, Color White, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Body Material Plastic, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Includes Light Module and Head, Mounting Base, Standards CSA, REACH, RoHS, UL Listed, WEEE
