  15. Pilot Light, LED, Yellow, 22mm, 24VAC/DC

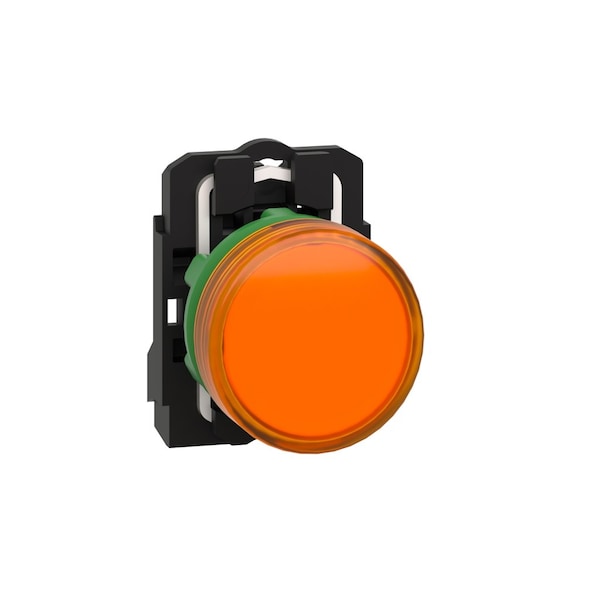

Schneider Electric Pilot Light, LED, Yellow, 22mm, 24VAC/DC XB5AVB5 - main

Pilot Light, LED, Yellow, 22mm, 24VAC/DC

  • Mfr # XB5AVB5

  • Zoro # G1651553

product price: $62.55
/ea

Key Features

Voltage
24V AC
Color
Yellow
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5AVB5
Zoro #
G1651553
UPC #
785901384014
Country of Origin
France

Dimensions

Size
22 mm
Length
54 mm
Height
42 mm
Width
30 mm
Depth
2.13 in (54 mm)
Mounting Diameter
0.87 in (22 mm)
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm
Overall Height
1.65 in
Overall Width
1.18 in
Overall Depth
2.13 in

Details

Item
Pilot Light
Voltage
24V AC
Color
Yellow
Lamp Type
LED
Shape
Round
Terminal Connection
Screw Clamp
Contact Form
(X1-X2)PL
Bezel
Dark Grey Plastic
Lens Material
Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Plastic
Standards
CSA, REACH, RoHS, UL Listed, WEEE
Includes
Light Module and Head, Mounting Base
IP Rating
IP66, IP67, IP69, IP69K
NEMA Rating
13, 4, 4X
Body Material
Plastic
Average Life
100000 hr
Type
Steady Signal
Supply Voltage Limits
19.2 to 30 V DC; 21.6 to 26.4 V AC
Resistance To Fast Transients
2 kV IEC 61000-4-4
Service Life
100000 h at rated voltage and 25°C
Cap/Operator Or Lens Color
Orange
Head Type
Standard
Electromagnetic Emission
Class B IEC 55011
Bulb Base
Integral LED
NEMA Degree Of Protection
NEMA 13; NEMA 4X
IK Degree Of Protection
IK05 IEC 50102
Ambient Air Temperature For Operation
-40 to 158°F (-40 to 70°C)
Product Certifications
CSA; UL Listed
Overvoltage Category
Class II IEC 60536
Resistance To High Pressure Washer
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
Protective Treatment
TH
Rated Insulation Voltage
250 V 3)IEC 60947-1
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
IP Degree Of Protection
IP66 IEC 60529; IP67 IEC 60529; IP69 IEC 60529; IP69K ISO 20653
Current Consumption
18 mA
Connections - Terminals
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
Bezel Material
Dark Gray plastic
Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Light Source
Universal LED
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Surge Withstand
1 kV IEC 61000-4-5
Product Or Component Type
Pilot light
Vibration Resistance
5 gn 12 to 500 Hz)IEC 60068-2-6
Signalling Type
Steady
Light Source Color
Orange
Shock Resistance
50 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation
Complete product
Electromagnetic Compatibility
Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011
Rated Supply Voltage
24 V AC/DC 50/60 Hz
Compatibility Code
XB5
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Series
XB5
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
NEMA Enclosure Rating
13, 4X
Lamp Color
Orange
Voltage Rating - Maximum
24 V AC/DC
Includes Lens
Lens Included
Lens Color
Orange
Includes Lamp Module
Lamp Module Included
Includes Push-To-Test
No Push-To-Test Included

Description

Pilot Light, Voltage 24V AC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 22 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Body Material Plastic, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Includes Light Module and Head, Mounting Base, Standards CSA, REACH, RoHS, UL Listed, WEEE
