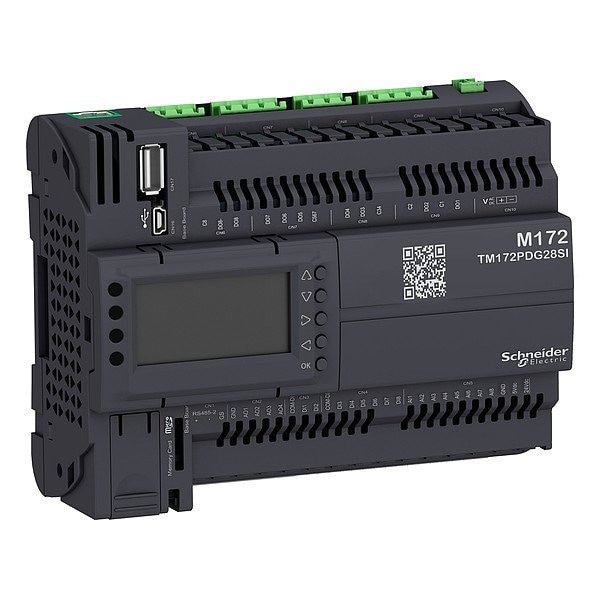

PLC, 32 GB Cap., 24 V AC/DC
Mfr # TM172PDG28SI
Zoro # G215890752
product price: $486.99
/ea
Free Shipping & Returns
Key Features
Overall Height
4.3 in
Clock Included
Clock Included
Output Circuit Current - Minimum
4 mA
Product Type
Programmable Logic Controller
Standards
CAN/CSA E60730-1, CE, CSA, CSA E60730-2-9, cURus, EAC, EN 60068-2-27, EN 60068-2-6 Fc, EN 60730-1, EN 60730-2-9, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, RCM, UL 60730-1, UL 60730-2-9, UL94 (Material V0)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TM172PDG28SI
Zoro #
G215890752
UPC #
3606489729509
Country of Origin
United States
Dimensions
Overall Height
4.3 in
Overall Width
5.7 in
Overall Depth
2.4 in
Details
Clock Included
Clock Included
Output Circuit Current - Minimum
4 mA
Product Type
Programmable Logic Controller
Standards
CAN/CSA E60730-1, CE, CSA, CSA E60730-2-9, cURus, EAC, EN 60068-2-27, EN 60068-2-6 Fc, EN 60730-1, EN 60730-2-9, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, RCM, UL 60730-1, UL 60730-2-9, UL94 (Material V0)
Item
PLC
Memory Capacity
32 GB
Output Circuit Voltage - Minimum
0 V DC
Number of Outputs
28
Input Circuit Current - Maximum
2.5 mA
Communication Protocol
BACnet, BACnet MS/TP, Modbus TCP, Serial Link
Output Type
(4) Analog, (8) Digital
Expandability
Expandable
Communication Protocol Method
Ethernet, RS-485, USB
Mounting Style
DIN Rail and Surface
Number of Inputs
28
Output Circuit Voltage - Maximum
10 V DC
Input Circuit Voltage - Maximum
24 V AC/DC
Input Type
(8) Analog, (8) Digital
Series
Modicon M171/M172/M173
Output Circuit Current - Maximum
20 mA
Display Type
LCD
Description
PLC, Output Type (4) Analog, (8) Digital, Number of Inputs 28, Number of Outputs 28
Restrictions
This item has been restricted from sale in the following states:
CA
