CAD Viewer & Download Files

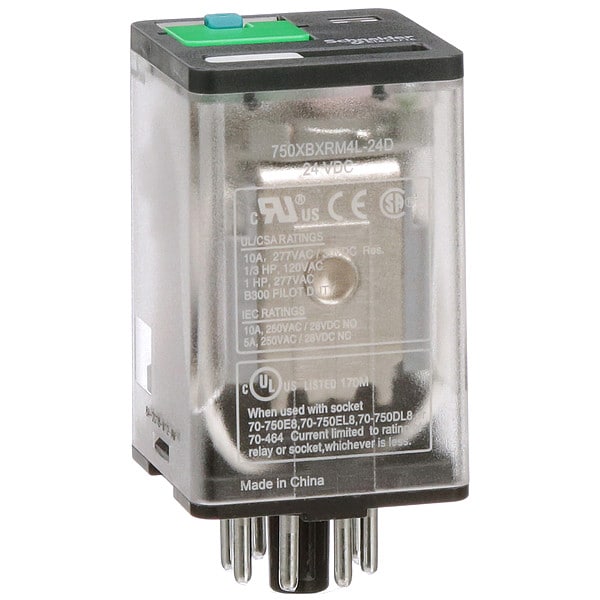

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin
Mfr # 750XBXRM4L-24D
Zoro # G9784494
CAD Available
product price: $27.75
/eaKey Features
CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
750XBXRM4L-24D
Zoro #
G9784494
UPC #
-
Country of Origin
China
Dimensions
Overall Height - Relay
2.2 in
Body Width
1.38 in
Body Height
1.4 in
Body Depth
2.17 in
Overall Depth
2.17 in
Width
1.38 in (35 mm)
Depth
1.40 in (35.5 mm)
Description
General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.17 in, Body Height 1.4 in
