  13. Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

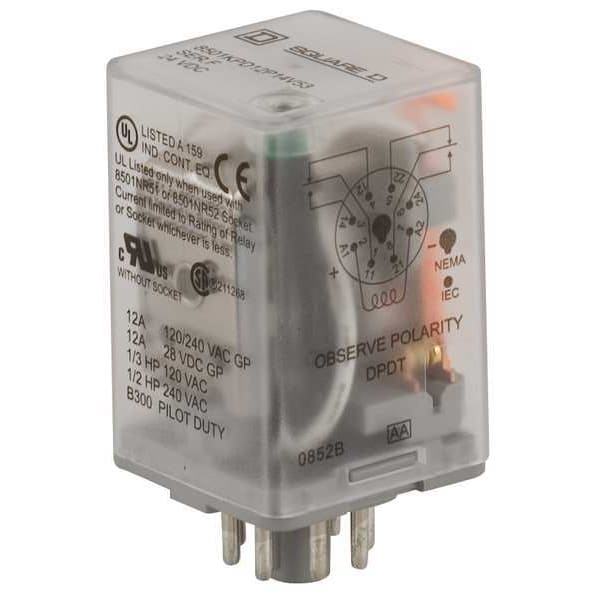

Schneider Electric Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin 8501KPDR12P14V53 - main

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

  • Mfr # 8501KPDR12P14V53

  • Zoro # G0275651

product price: $60.65
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501KPDR12P14V53
Zoro #
G0275651
UPC #
785901348894
Country of Origin
China

Dimensions

Overall Height - Relay
2.6 in
Overall Depth
2.7 in
Body Width
1.4 in
Body Depth
2.1 in
Body Height
1.4 in
Width
1.4 in (35.56 mm)
Depth
1.4 in (35.56 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V, 10 A @ 120V
Contact Rating (DC)
10 A @ 28V
HP @ 240V
1/2 hp
Power Consumption - Relay
1.4 W
Standards
CE Marked, CSA Certified, UL Listed
Status Indicator
LED and Mechanical Flag
Socket
Mfr. No. 8501NR51 or 8501NR52
Contact Material
Silver Nickel
HP @ 120V
1/3 hp
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
A
Features
Indicator Light Relay Energised LED
Response Time
20 msec
Motor Rated
Yes
Maximum Operating Temperature
131 Degrees F
Power Consumption
1.4 W
Compatible with Manufacturer Model Number
8501NR51, 8501NR52
Push-To-Test Method
No Test Button
Horsepower @ 240V AC
1/2 hp
Pin Shape
Round
Series
Square D 8501K Series
Minimum Operating Temperature
-40 Degrees F
Sealing
Enclosed
Maximum Switching Voltage
300V AC, 30V DC
Horsepower @ 120V AC
1/3 hp
Compatible Manufacturer Part Number
8501NR51, 8501NR52
Compatible Manufacturer Model Number
8501NR51, 8501NR52
For Use With
8501NR52; 8501NR51
Switching Voltage
300 V AC; 30 V DC
Ambient Temperature Range - Operational
-40 to 131°F (-40 to 55°C)
Shape Of Pins
Tubular
Manual Operator
Without test button
Breaking Capacity
3 A 120 V AC inductive control circuit UL 508; 1.5 A 240 V AC inductive control circuit UL 508; 10 A 277 V AC resistive control circuit UL 508; 10 A 30 V DC resistive control circuit UL 508
Product Certifications
UL Listed; UL Recognized; CSA; CE
Control Circuit Voltage
24 V DC
Operating Time
20 ms - pick-up || 20 ms - drop-out

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 120V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in
