  13. Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal

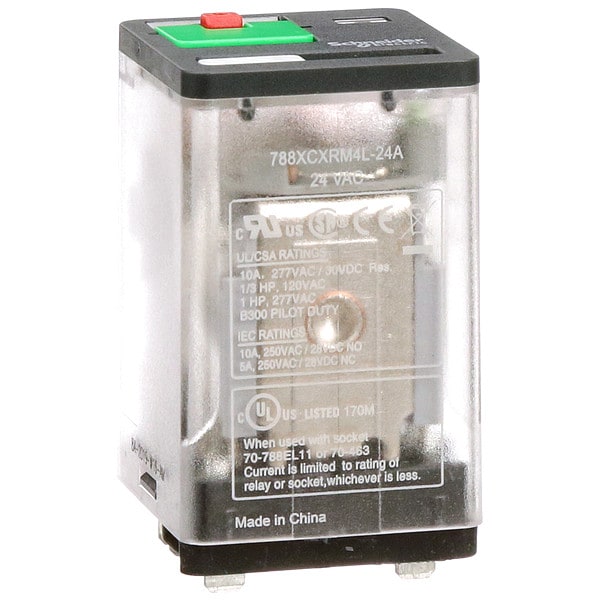

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal 788XCXRM4L-24A - main

Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal

  • Mfr # 788XCXRM4L-24A

  • Zoro # G9988702

product price: $23.55
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
788XCXRM4L-24A
Zoro #
G9988702
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.09 in
Overall Depth
2.09 in
Body Width
1.38 in
Body Height
1.4 in
Body Depth
2.09 in
Flat Pin Width
0.189 in
Depth
1.40 in (35.5 mm)
Width
1.38 in (35 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
24V AC
Current Rating
10 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1
Contact Rating (DC)
10 A @ 28V
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Power Consumption - Relay
3 VA
Contact Material
Silver Alloy
Standards
CE Certified, CSA Certified, EAC, UL Listed
Status Indicator
LED Indicator
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
C
Weight
2.93 oz
Coil Resistance
72 ohm
Resistance Properties
Shock-Resistant, Vibration-Resistant
Series
788R Series
Pin Shape
Flat
Horsepower @ 240V AC
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Motor Rated
Yes
Response Time
20 msec
Maximum Switching Voltage
250V, 300V
Horsepower @ 120V AC
1/3 hp
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Electrical Operating Durability
100,000
Sealing
Enclosed
Mechanical Operating Durability
5,000,000
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Power Consumption
3 VA
Push-To-Test Method
Lockable Push Test Button
Input Voltage
24V AC
Minimum Switching Current
10 mA
Maximum Operating Temperature
131 Degrees F
IP Rating
IP40
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Shock Resistance
10 gn
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Operating Time
20 ms
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Control Circuit Voltage Limits
0.85...1.1 Un AC
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Control Type
Lockable test button
Product Certifications
UL; CSA; CE; EAC
Contact Composition
3 NO + 3 NC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.4 in
