  13. Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal

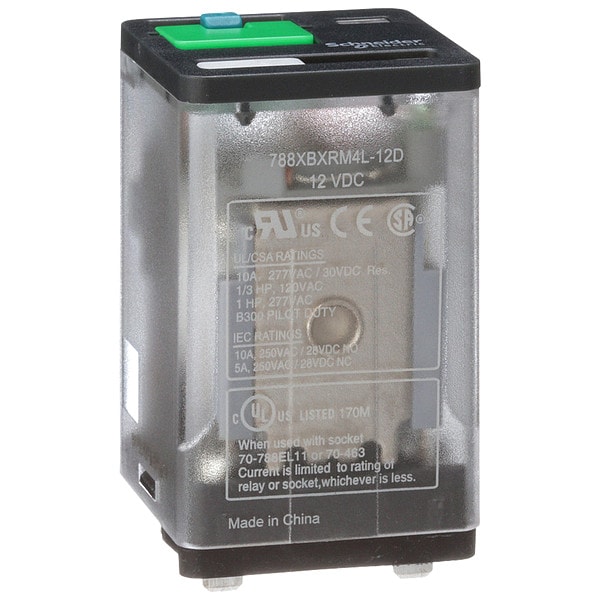

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal 788XBXRM4L-12D - main

Plug-In, General Purpose Relay, Square, 10 A, 8 Pins, Blade Terminal

  • Mfr # 788XBXRM4L-12D

  • Zoro # G9784345

product price: $18.89
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
788XBXRM4L-12D
Zoro #
G9784345
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.09 in
Flat Pin Width
0.189 in
Body Height
1.4 in
Body Depth
2.09 in
Overall Depth
2.09 in
Body Width
1.38 in
Width
1.38 in (35 mm)
Depth
1.40 in (35.5 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
12V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1
Contact Rating (DC)
10 A @ 28V
Standards
CE Certified, CSA Certified, EAC, UL Listed
Power Consumption - Relay
1.4 W
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Features
Clear Cover
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Status Indicator
LED Indicator
Socket Code
C
Contact Material
Silver Alloy
Maximum Operating Temperature
131 Degrees F
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Series
788R Series
Electrical Operating Durability
100,000
Input Voltage
12V DC
Sealing
Enclosed
Horsepower @ 240V AC
1/2 hp
Motor Rated
Yes
Pin Shape
Flat
Minimum Operating Temperature
-40 Degrees F
Push-To-Test Method
Lockable Push Test Button
Resistance Properties
Shock-Resistant, Vibration-Resistant
Weight
2.93 oz
Maximum Switching Voltage
250V, 300V
IP Rating
IP40
Power Consumption
1.4 W
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Response Time
20 msec
Coil Resistance
120 ohm
Mechanical Operating Durability
5,000,000
Horsepower @ 120V AC
1/3 hp
Minimum Switching Current
10 mA
Shock Resistance
10 gn
Contact Composition
2 NC + 2 NO
Operating Time
20 ms
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Control Type
Lockable test button
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Product Certifications
UL; CSA; CE; EAC
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Control Circuit Voltage Limits
0.8...1.1 Un DC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.4 in
