  13. Plug-In, General Purpose Relay, Square, 15 A, 11 Pins, Quick Connect

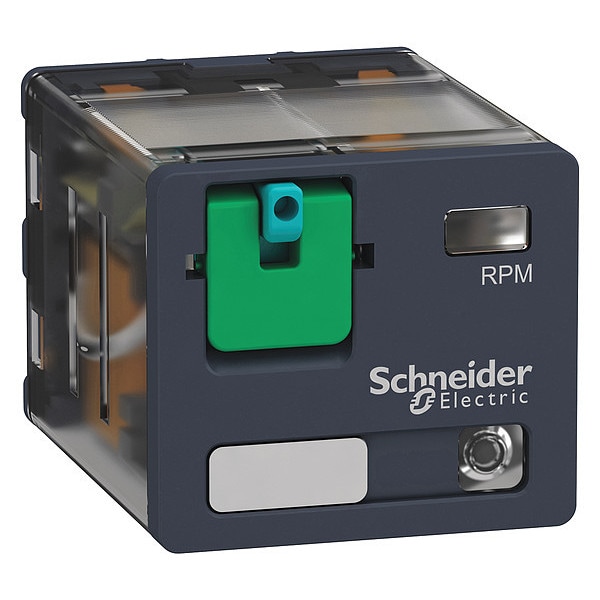

Schneider Electric Plug-In, General Purpose Relay, Square, 15 A, 11 Pins, Quick Connect RPM32BD - main

CAD Drawings

Download CAD Files

Plug-In, General Purpose Relay, Square, 15 A, 11 Pins, Quick Connect

  • Mfr # RPM32BD

  • Zoro # G0860587

CAD Available
product price: $15.45
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
11
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RPM32BD
Zoro #
G0860587
UPC #
785901572817
Country of Origin
China

Dimensions

Overall Height - Relay
2.13 in
Flat Pin Width
0.18 in
Overall Depth
1.82 in
Body Width
1.22 in
Body Depth
1.54 in
Body Height
1.06 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
11
Coil Voltage
24V DC
Current Rating
15 A
Contact Form
3PDT
Contact Rating (AC)
15 A @ 250V
Contact Rating (DC)
15 A @ 28V
Contact Material
Silver Alloy
Status Indicator
LED and Mechanical Flag
Features
Plug In Protection Module to Protect Against Electrical Spikes
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Power Consumption - Relay
1.5 W
Socket Code
E
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. RPZF3
Response Time
20 msec
Power Consumption
1.5 W
Maximum Switching Voltage
250V
Weight
1.92 oz
Push-To-Test Method
Lockable Push Test Button
Horsepower @ 120V AC
Not Rated
Sealing
Enclosed
Pin Shape
Flat
Maximum Operating Temperature
131 Degrees F
Minimum Operating Temperature
-40 Degrees F
Horsepower @ 240V AC
Not Rated
Mechanical Operating Durability
10,000,000
Coil Resistance
320 ohm
For Use With
Hard-Wired Logic Automated Systems
Series
Harmony(TM) RPM Series
IP Rating
IP40
Electrical Operating Durability
100,000
Motor Rated
Not Rated - Not Rated
Input Voltage
26.4V DC
Resistance Properties
Shock-Resistant, Vibration-Resistant
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic
Minimum Switching Current
10 mA
Operating Time
20 ms at nominal voltage
Protection Category
RT I
Switching Voltage
250 V IEC
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in
