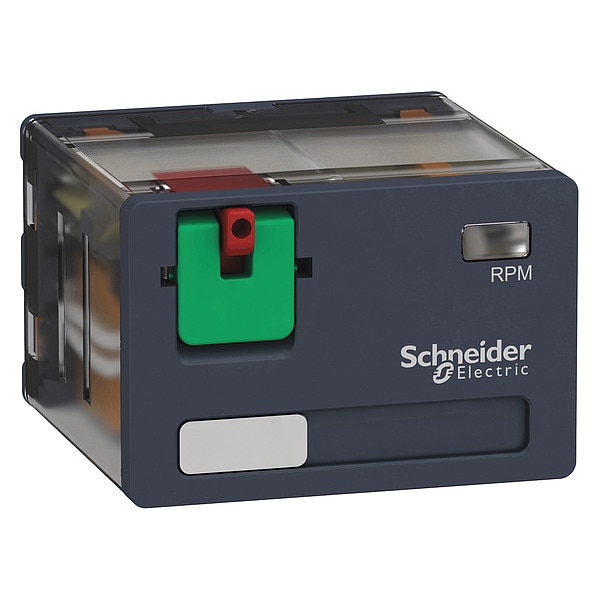

Schneider Electric Plug-In, General Purpose Relay, Square, 15 A, 14 Pins, Quick Connect RPM41F7 - main

Plug-In, General Purpose Relay, Square, 15 A, 14 Pins, Quick Connect

  • Mfr # RPM41F7

  • Zoro # G0682017

product price: $16.99
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RPM41F7
Zoro #
G0682017
UPC #
785901572855
Country of Origin
China

Dimensions

Overall Height - Relay
2.13 in
Flat Pin Width
0.18 in
Overall Depth
1.82 in
Body Height
1.06 in
Body Depth
1.54 in
Body Width
1.61 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
14
Coil Voltage
120V AC
Current Rating
15 A
Contact Form
4PDT
Contact Rating (AC)
15 A @ 250V
Contact Rating (DC)
15 A @ 28V
Status Indicator
Mechanical Flag
Socket
Mfr. No. RPZF4
Socket Code
F
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Power Consumption - Relay
2.5 VA
Features
Plug In Protection Module to Protect Against Electrical Spikes
Contact Material
Silver Alloy
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Resistance Properties
Shock-Resistant, Vibration-Resistant
Minimum Operating Temperature
-40 Degrees F
Electrical Operating Durability
100,000
Power Consumption
2.5 VA
Maximum Operating Temperature
131 Degrees F
Horsepower @ 240V AC
Not Rated
Coil Resistance
2,100 ohm
Frequency
50/60 Hz
Sealing
Enclosed
IP Rating
IP40
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic
Weight
2.56 oz
Series
Harmony(TM) RPM Series
Horsepower @ 120V AC
Not Rated
Minimum Switching Current
10 mA
Response Time
20 msec
Input Voltage
132V AC
Pin Shape
Flat
Push-To-Test Method
Lockable Push Test Button
Maximum Switching Voltage
250V
For Use With
Hard-Wired Logic Automated Systems
Motor Rated
Not Rated - Not Rated
Mechanical Operating Durability
10,000,000
Operating Time
20 ms at nominal voltage
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Protection Category
RT I
Switching Voltage
250 V IEC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in, Body Width 1.61 in
